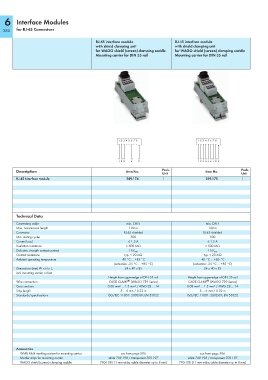

6 Interface Modules

for RJ-45 Connectors
380
RJ-45 interface module RJ-45 interface module
with shield clamping unit with shield clamping unit
for WAGO shield (screen) clamping saddle for WAGO shield (screen) clamping saddle
Mounting carrier for DIN 35 rail Mounting carrier for DIN 35 rail

Description Item No. Pack. Item No. Pack.
Unit Unit
RJ-45 Interface module 289-174 1 289-175 1

Technical Data

Connecting cable min. CAT5 min. CAT5
Max. transmission length 100 m 100 m
Connector RJ-45 shielded RJ-45 shielded
Min. mating cycles 500 500
Current load ≤ 1.5 A ≤ 1.5 A
Insulation resistance > 500 MΩ > 500 MΩ
Dielectric strength contact-contact 1 kV rms 1 kV rms
Contact resistance typ. < 20 mΩ typ. < 20 mΩ
Ambient operating temperature -40 °C ... +85 °C -40 °C ... +85 °C
(actuation: -35 °C ... +85 °C) (actuation: -35 °C ... +85 °C)
Dimensions (mm) W x H x L, 24 x 40 x 85 24 x 40 x 85
incl. mounting carrier or feet
Height from upper-edge of DIN 35 rail Height from upper-edge of DIN 35 rail
®
®
Wire connection CAGE CLAMP (WAGO 739 Series) CAGE CLAMP (WAGO 739 Series)
Cross sections 0.08 mm² ... 1.5 mm² / AWG 28 ... 14 0.08 mm² ... 1.5 mm² / AWG 28 ... 14
Strip length 5 ... 6 mm / 0.22 in 5 ... 6 mm / 0.22 in
Standards/specifications ISO/IEC 11801: 2002-09; EN 55022 ISO/IEC 11801: 2002-09; EN 55022

Accessories
WMB Multi marking system for mounting carrier see from page 506 see from page 506
Marker strips for mounting carrier white 709-198 / transparent 709-197 white 709-198 / transparent 709-197
WAGO shield (screen) clamping saddle 790-108 (11 mm wide; cable diameter up to 8 mm) 790-108 (11 mm wide; cable diameter up to 8 mm)
