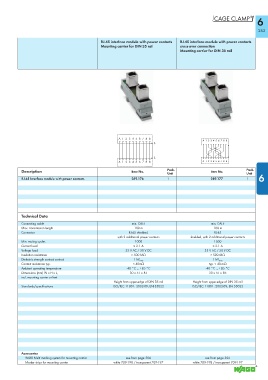

RJ-45 interface module with power contacts RJ-45 interface module with power contacts
Mounting carrier for DIN 35 rail cross-over connection
Mounting carrier for DIN 35 rail

A 12345678 B
S

S
A 12345678 B

Description Item No. Pack. Item No. Pack.
Unit Unit
RJ-45 Interface module with power contacts 289-176 1 289-177 1 6

Technical Data

Connecting cable min. CAT5 min. CAT5 8
Max. transmission length 100 m 100 m
Connector RJ-45 shielded, RJ-45
with 2 additional power contacts shielded, with 2 additional power contacts
Min. mating cycles 1000 1000
Current load ≤ 2.1 A ≤ 2.1 A
Voltage load 35 V AC / 50 V DC 35 V AC / 50 V DC
Insulation resistance > 500 MΩ > 500 MΩ
Dielectric strength contact-contact 1 kV rms 1 kV rms
Contact resistance typ. < 40mΩ typ. < 40 mΩ
Ambient operating temperature -40 °C ... +85 °C -40 °C ... +85 °C
Dimensions (mm) W x H x L, 30 x 51 x 85 30 x 51 x 85
incl. mounting carrier or feet
Height from upper-edge of DIN 35 rail Height from upper-edge of DIN 35 rail
Standards/specifications ISO/IEC 11801: 2002-09; EN 55022 ISO/IEC 11801: 2002-09; EN 55022

Accessories
WMB Multi marking system for mounting carrier see from page 506 see from page 506
Marker strips for mounting carrier white 709-198 / transparent 709-197 white 709-198 / transparent 709-197
