7 WAGO System Wiring

Overview and Application Examples
388

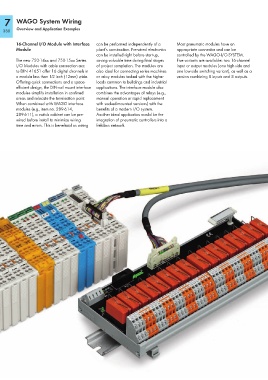

16-Channel I/O Module with Interface can be performed independently of a Most pneumatic modules have an
Module plant’s construction. Pre-wired electronics appropriate connector and can be
can be installed right before start-up, controlled by the WAGO-I/O-SYSTEM.
The new 750-14xx and 750-15xx Series saving valuable time during final stages Five variants are available: two 16-channel
I/O Modules with cable connection acc of project completion. The modules are input or output modules (one high-side and
to DIN 41651 offer 16 digital channels in also ideal for connecting series machines one low-side switching variant), as well as a
a module less than 1⁄2 inch (12mm) wide. or relay modules tasked with the higher version combining 8 inputs and 8 outputs.
Offering quick connections and a space- loads common to buildings and industrial
efficient design, the DIN-rail mount interface applications. The interface module also
modules simplify installation in confined combines the advantages of relays (e.g.,
areas and relocate the termination point. manual operation or rapid replacement
When combined with WAGO interface with socked-mounted versions) with the
modules (e.g., item no. 289-614, benefits of a modern I/O system.
289-611), a switch cabinet can be pre- Another ideal application would be the
wired before install to minimize wiring integration of pneumatic controllers into a
time and errors. This is beneficial as wiring fieldbus network.
