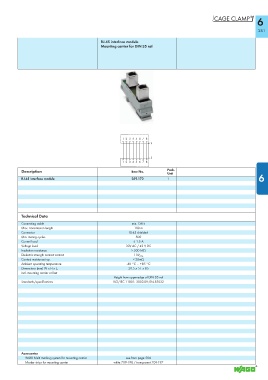

                                              RJ-45 interface module
                                              Mounting carrier for DIN 35 rail
























                                                       12345678
                                                                    S


                                                                    S
                                                       12345678

           Description                                     Item No.        Pack.
                                                                           Unit
           RJ-45 Interface module                          289-172         1                                        6








           Technical Data

           Connecting cable                                 min. CAT5                                               8
           Max. transmission length                          100 m
           Connector                                      RJ-45 shielded
           Min. mating cycles                                500
           Current load                                     ≤ 1.5 A
           Voltage load                                  30V AC / 42 V DC
           Insulation resistance                           > 500 MΩ
           Dielectric strength contact-contact              1 kV rms
           Contact resistance typ.                          < 20mΩ
           Ambient operating temperature                 -40 °C ... +85 °C
           Dimensions (mm) W x H x L,                     20.5 x 51 x 85
           incl. mounting carrier or feet
                                                   Height from upper-edge of DIN 35 rail
           Standards/specifications                ISO/IEC 11801: 2002-09; EN 55022

















           Accessories
            WMB Multi marking system for mounting carrier  see from page 506
            Marker strips for mounting carrier     white 709-198 / transparent 709-197
