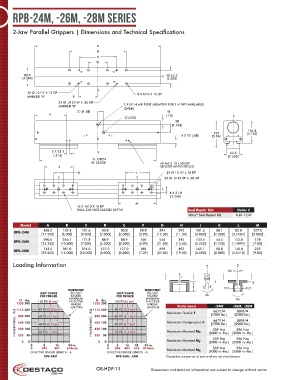

Page 11 - Destaco - Pneumatic Heavy Duty Grippers

RPB-24M, -26M, -28M Series

2-Jaw Parallel Grippers | Dimensions and Technical Specifications

A
B
C
D
"B" "A"
88.9 C L 4X 63.5
[3.500] [2.500]
"A" "B"
L C
2X Ø 10 H7 X 12 DP 8 X M10 X 15 DP
MARKED "A" E
2X Ø .3125 SF X .85 DP 2 X G1/4 AIR PORT (ADAPTER FOR 1/4 NPT AVAILABLE)
MARKED "B" (OPEN)
27 [1.08] 18
F [.70] C L
(CLOSE)
38
[1.498]
104.8
129 [4.125]
4 X 12 [.48] [5.06]

2 X 13.1 L C 63.5
[.514] [2.500]
G OPEN
H CLOSE 4X M5 X 10 [.40] DP
J SENSOR MNTG HOLES
K L 2X Ø 10 H7 x 12 DP
C L L C 2X Ø .3125 SF X .50 DP

L C
8 X 31.8
[1.250]
M
16 X M10 X 15 DP
(MAX. DO NOT EXCEED DEPTH) Seal Repair Kits Order #
®
Viton Seal Repair Kit SLKT-123V
Model A B C D E F G H J K L M
438.2 152.4 101.6 50.8 50.8 98.9 394 292 101.6 38.1 82.0 127.0
RPB-24M [17.250] [6.000] [4.000] [2.000] [2.000] [3.90] [15.50] [11.50] [4.000] [1.500] [3.2284] [5.000]
590.5 266.7 177.8 88.9 88.9 150 546 394 133.4 44.5 112.0 178
RPB-26M
[23.250] [10.500] [7.000] [3.500] [3.500] [5.90] [21.50] [15.50] [5.250] [1.750] [1.4094] [7.00]
743.0 381.0 254.0 127.0 127.0 188 699 495 165.1 50.8 140.0 229
RPB-28M
[29.250] [15.000] [10.000] [5.000] [5.000] [7.39] [27.50] [19.50] [6.500] [2.000] [5.5118] [9.00]
Loading Information Z Z
MZ

Y X
L C T
WARNING! WARNING! F/2 F/2
GRIP FORCE DO NOT GRIP FORCE DO NOT
PER FINGER EXCEED PER FINGER EXCEED M X
N lbs. 100 PSI [6 bar] MAXIMUM N lbs. 100 PSI [6 bar] MAXIMUM MY
EFFECTIVE
EFFECTIVE
1335 300 FINGER 1335 300 FINGER
Static Load
-24M
LENGTHS 1113 250 80 PSI [5.5 bar] LENGTHS Maximum Tensile T [1500 lbs.] -26M, -28M
80 PSI [5.5 bar]
250
1113
FINGER FORCE - F/2 890 200 60 PSI [4.1 bar] FINGER FORCE - F/2 890 200 60 PSI [4.1 bar] Maximum Compressive C [1500 lbs.] [2000 lbs.]
6672 N
8896 N
[2000 lbs.]
8896 N
6672 N
668
668
150
150
40 PSI [2.7 bar]
40 PSI [2.7 bar]
450
450
100
100
396 Nm
339 Nm
Maximum Moment Mx
20 PSI [1.4 bar]
20 PSI [1.4 bar]
[3000 in.-lbs.] [3500 in.-lbs.]
50
223
223
50
339 Nm 396 Nm
0 0 0 0 Maximum Moment My [3000 in.-lbs.] [3500 in.-lbs.]
0 8 16 24 in. 0 8 16 24 32 in.
0 203 407 610mm 0 203 407 610 813mm Maximum Moment Mx 339 Nm 396 Nm
EFFECTIVE FINGER LENGTH - L EFFECTIVE FINGER LENGTH - L [3000 in.-lbs.] [3500 in.-lbs.]
RPB-24M RPB-26M, -28M † Capacities are per set of jaws and are not simultaneous
GR-HDP-11 Dimensions and technical information are subject to change without notice
