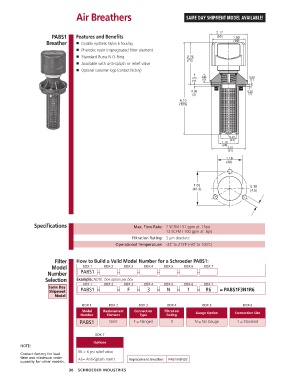

Page 32 - Schroeder - Accessories

Air Breathers SAME DAY SHIPMENT MODEL AVAILABLE!

PABS1 Features and Benefits
Breather ■ Durable synthetic Nylon 6 housing
■ Phenolic resin impregnated filter element
■ Standard Buna N O-Ring
■ Available with anti-splash or relief valve
■ Optional customer logo (contact factory)

Specifications Max. Flow Rate: 7 SCFM / 51 gpm at .15psi
13 SCFM / 100 gpm at .6psi
Filtration Rating: 3 µm absolute
Operational Temperature: -22˚ to 212˚F (-30˚ to 100˚C)

Filter How to Build a Valid Model Number for a Schroeder PABS1:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7
Number PABS1 – – – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7
Same Day PABS1 – – F – 3 – N – 1 – R6 = PABS1F3N1R6
Shipment
Model
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
Model Replacement Connection Filtration
Number Element Type Rating Gauge Option Connection Size
PABS1 Omit F = Flanged 3 N = No Gauge 1 = Standard

BOX 7
Options
NOTE:
R6 = 6 psi relief valve
Contact factory for lead
time and minimum order AS= Anti-Splash Insert Replacement Breather: PAB1M3N22
quantity for other models.
