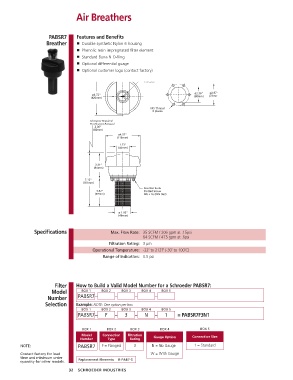

Air Breathers

PABSR7 Features and Benefits
Breather ■ Durable synthetic Nylon 6 housing
■ Phenolic resin impregnated filter element
■ Standard Buna N O-Ring
■ Optional differential guage
■ Optional customer logo (contact factory)
Optional
Indicator

ø2.36” ø2.87”
ø4.72” (73mm)
(120mm) (60mm)
M5 Thread
6 places
Clearance Required
For Element Removal
2.36”
(60mm)
ø4.57”
(116mm)
1.73”
(44mm)

3.31”
(84mm)

7.13”
(181mm)
Counter Sunk
3.82” Slotted Screw
(97mm) M5 x 16 (DIN 963)

ø 1.93”
(49mm)

Specifications Max. Flow Rate: 35 SCFM / 206 gpm at .15psi
64 SCFM / 475 gpm at .6psi
Filtration Rating: 3 µm
Operational Temperature: -22˚ to 212˚F (-30˚ to 100˚C)
Range of Indication: 0.5 psi

Filter How to Build a Valid Model Number for a Schroeder PABSR7:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Number PABSR7– – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
PABSR7– F – 3 – N – 1 = PABSR7F3N1

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Model Connection Filtration Connection Size
Number Type Rating Gauge Option
NOTE: PABSR7 F = Flanged 3 N = No Gauge 1 = Standard
Contact factory for lead W = With Gauge
time and minimum order Replacement Elements: R-PAB7-3
quantity for other models.
