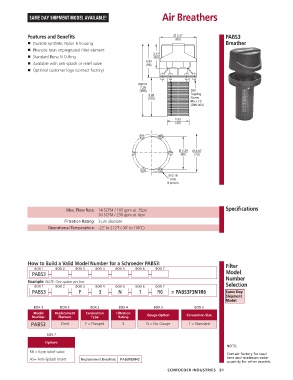

Page 33 - Schroeder - Accessories

SAME DAY SHIPMENT MODEL AVAILABLE! Air Breathers

Features and Benefits PABS3
■ Durable synthetic Nylon 6 housing Breather
■ Phenolic resin impregnated filter element
■ Standard Buna N O-Ring
■ Available with anti-splash or relief valve
■ Optional customer logo (contact factory)

Max. Flow Rate: 14 SCFM / 105 gpm at .15psi Specifications
30 SCFM / 230 gpm at .6psi
Filtration Rating: 3 µm absolute
Operational Temperature: -22˚ to 212˚F (-30˚ to 100˚C)

How to Build a Valid Model Number for a Schroeder PABS3: Filter
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7
PABS3 – – – – – – Model
Number
Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 Selection
PABS3 – – F – 3 – N – 1 – R6 = PABS3F3N1R6 Same Day
Shipment
Model
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
Model Replacement Connection Filtration
Number Element Type Rating Gauge Option Connection Size
PABS3 Omit F = Flanged 3 N = No Gauge 1 = Standard

BOX 7
Options
NOTE:
R6 = 6 psi relief valve
Contact factory for lead
AS= Anti-Splash Insert Replacement Breather: PAB3M3N42 time and minimum order
quantity for other models.
SCHROEDER INDUSTRIES 31
