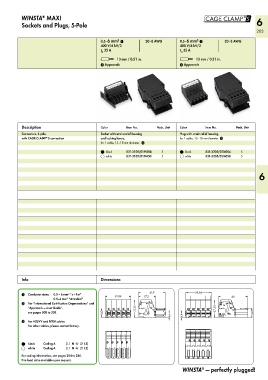

WINSTA MAXI 6
®
Sockets and Plugs, 5-Pole
203
0.5–6 mm² 1 20–8 AWG 0.5–6 mm² 1 20–8 AWG
400 V/6 kV/3 400 V/6 kV/3
I 35 A I 35 A
N
N
L 13 mm / 0.51 in. L 13 mm / 0.51 in.
2 Approvals 2 Approvals
Description Color Item No. Pack. Unit Color Item No. Pack. Unit
Connectors, 5-pole, Socket with strain relief housing Plug with strain relief housing,
with CAGE CLAMP S connection and locking levers, for 1 cable, 13–18 mm diameter 3
®
for 1 cable, 13–18 mm diameter 3
black 831-3105/019-004 5 black 831-3205/020-004 5
white 831-3105/019-050 5 white 831-3205/020-050 5
6
Info Dimensions
1 Conductor sizes: 0.5 – 6 mm² “s + f-st” <_____ 39,98 _____> <______ 41,9 ______> <_____39,98_____> <________46________>
<___ 27,2 ___>
0.5–4 mm² “stranded”
2 For “International Certification Organizations” and
“Approvals — User Guide”, <__ 27,55 __> <__27,55__>
see pages 300 to 303. (14,2 ) 6,4< < 6,4 (14,8)
3 For H05VV and NYM cables > >
For other cables, please contact factory.
black Coding A (L1 N 3 L2 L3)
white Coding A (L1 N 3 L2 L3)
For coding information, see pages 284 to 286.
Fire load data available upon request.
WINSTA — perfectly plugged!
®
