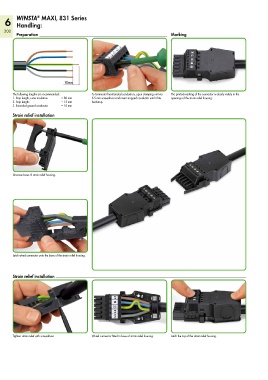

P. 204
®
6 WINSTA MAXI, 831 Series
Handling:
202
Preparation Marking
The following lengths are recommended: To terminate fine-stranded conductors, open clamping unit via The printed marking of the connector is clearly visible in the
1. Strip length, outer insulation = 80 mm 5.5 mm screwdriver and insert stripped conductor until it hits openings of the strain relief housing.
2. Strip length: = 13 mm backstop.
3. Extended ground conductor = 10 mm
Strain relief installation
Unscrew base of strain relief housing.
Latch wired connector onto the base of the strain relief housing.
Strain relief installation
Tighten strain relief with screwdriver. Wired connector fitted in base of strain relief housing. Latch the top of the strain relief housing.
