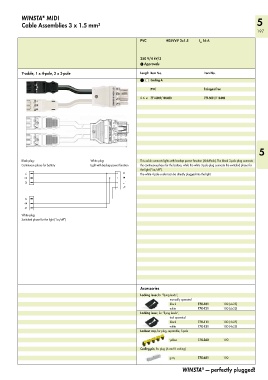

WINSTA MIDI 5
®
Cable Assemblies 3 x 1.5 mm²
197
PVC H05VV-F 3x1.5 I 16 A
N

250 V/4 kV/3
1 Approvals

Y-cable, 1 x 4-pole, 2 x 3-pole Length Item No. Item No.
Coding A
PVC halogen-free
0.6 m 771-5001/100-000 771-5001/110-000

5

Black plug: White plug: This cable connects lights with backup power function (AkkuPack). The black 3-pole plug connects
Continuous phase for battery Light with backup power function the continuous phase for the battery, while the white 3-pole plug connects the switched phase for
the light (“on/off”).
N N The white 4-pole socket can be directly plugged into the light.
3 3
L2 2 L |
1 L' |

L1
3
N
White plug:
Switched phase for the light (“on/off”)

Accessories
Locking lever,for “flying leads”,
manually operated
black 770-101 100 (4x25)
white 770-121 100 (4x25)
Locking lever, for “flying leads”,
tool operated
black 770-111 100 (4x25)
white 770-131 100 (4x25)
Lockout cap, for plug, separable, 5-pole

yellow 770-360 100
Coding pin, for plug (A and B coding)
gray 770-401 100

WINSTA — perfectly plugged!
®
