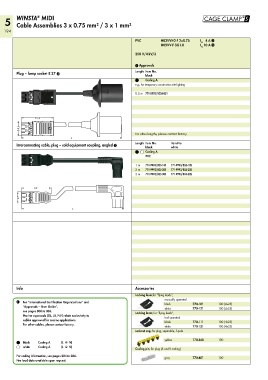

5 WINSTA MIDI
Cable Assemblies 3 x 0.75 mm² / 3 x 1 mm²
194
PVC H03VVH2-F 2x0.75 I 4 A 2
N
H05VV-F 3G1.0 I 10 A 3
N
250 V/4 kV/3

1 Approvals
Length Item No.
Plug – lamp socket E 27 2 black
Coding A
e.g., for temporary construction site lighting
0.5 m 771-8993/1004-051

<________75,9________>
<_34,6_> L 3 N

<______________________________________L______________________________________> For other lengths, please contact factory.
Length Item No. Item No.
Interconnecting cable, plug – cold equipment coupling, angled 3 black white
Coding A
PVC

1 m 771-9993/805-101 771-9993/805-102
2 m 771-9993/805-201 771-9993/805-202
3 m 771-9993/805-301 771-9993/805-302

<_______69________>
<_27_> L 3 N

<____________________________________ L ____________________________________>

Info Accessories
Locking lever,for “flying leads”,
manually operated
1 For “International Certification Organizations” and black 770-101 100 (4x25)
“Approvals — User Guide”, white 770-121 100 (4x25)
see pages 300 to 303. Locking lever, for “flying leads”,
Marine approvals (GL, LR, NV) relate exclusively to tool operated
cables approved for marine applications.
For other cables, please contact factory. black 770-111 100 (4x25)
white 770-131 100 (4x25)
Lockout cap, for plug, separable, 5-pole

yellow 770-360 100
black Coding A (L 3 N)
white Coding A (L 3 N) Coding pin, for plug (A and B coding)
For coding information, see pages 284 to 286. gray 770-401 100
Fire load data available upon request.
