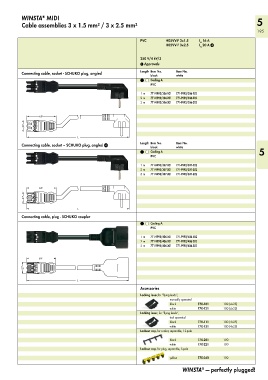

WINSTA MIDI 5
®
Cable assemblies 3 x 1.5 mm² / 3 x 2.5 mm²
195
PVC H05VV-F 3x1.5 I 16 A
N
H05VV-F 3x2.5 I 20 A 4
N
250 V/4 kV/3
1 Approvals

Connecting cable, socket - SCHUKO plug, angled Length Item No. Item No.

black
white
Coding A
PVC
1 m 771-9993/306-101 771-9993/306-102
2 m 771-9993/306-201 771-9993/306-202
3 m 771-9993/306-301 771-9993/306-302

<_______69________>
<_27_> N 3 L

<____________________________________ L ____________________________________>
Length Item No. Item No.
Connecting cable, socket – SCHUKO plug, angled 4 black white
Coding A 5
PVC

1 m 771-9993/307-101 771-9993/307-102
2 m 771-9993/307-201 771-9993/307-202
3 m 771-9993/307-301 771-9993/307-302

<_______69________>
<_27_> N 3 L

<____________________________________ L ____________________________________>
Connecting cable, plug - SCHUKO coupler
Coding A
PVC

1 m 771-9993/406-101 771-9993/406-102
2 m 771-9993/406-201 771-9993/406-202
3 m 771-9993/406-301 771-9993/406-302

<_______69________>
<_27_> N 3 L

<____________________________________ L ____________________________________>
Accessories
Locking lever,for “flying leads”,
manually operated
black 770-101 100 (4x25)
white 770-121 100 (4x25)
Locking lever, for “flying leads”,
tool operated
black 770-111 100 (4x25)
white 770-131 100 (4x25)
Lockout cap, for socket, separable, 12-pole

black 770-201 100
white 770-221 100
Lockout cap, for plug, separable, 5-pole
yellow 770-360 100

WINSTA — perfectly plugged!
®
