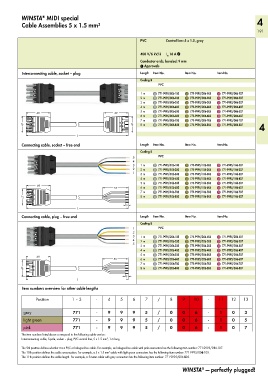

Page 193 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

WINSTA MIDI special 4
®
Cable Assemblies 5 x 1.5 mm²
191
PVC Control line: 5 x 1.5, gray

400 V/6 kV/3 I 16 A 2
N
Conductor ends, bonded: 9 mm
1 Approvals
Interconnecting cable, socket – plug Length Item No. Item No. Item No.
Coding B
PVC
1 m 771-9995/006-103 771-9995/006-105 771-9995/006-107
2 m 771-9995/006-203 771-9995/006-205 771-9995/006-207
3 m 771-9995/006-303 771-9995/006-305 771-9995/006-307
4 m 771-9995/006-403 771-9995/006-405 771-9995/006-407
5 m 771-9995/006-503 771-9995/006-505 771-9995/006-507
<_____ 69 _____> <_____ 69 _____>
6 m 771-9995/006-603 771-9995/006-605 771-9995/006-607
<___ 47 ___> <___ 47 ___> 8 m 771-9995/006-803 771-9995/006-805 771-9995/006-807 4
771-9995/006-707
771-9995/006-705
7 m
771-9995/006-703
<_____________________________________ L _____________________________________>
Connecting cable, socket – free end Length Item No. Item No. Item No.
Coding B
5 PVC
4
3 1 m 771-9995/106-103 771-9995/106-105 771-9995/106-107
2 2 m 771-9995/106-203 771-9995/106-205 771-9995/106-207
1 3 m 771-9995/106-303 771-9995/106-305 771-9995/106-307
4 m 771-9995/106-403 771-9995/106-405 771-9995/106-407
5 m 771-9995/106-503 771-9995/106-505 771-9995/106-507
<_____ 69 _____> <______ 55 ______> 6 m 771-9995/106-603 771-9995/106-605 771-9995/106-607
<___ 47 ___> 7 m 771-9995/106-703 771-9995/106-705 771-9995/106-707
771-9995/106-805
771-9995/106-807
8 m
771-9995/106-803
> 9 <
<_____________________________________ L _____________________________________>
Connecting cable, plug – free end Length Item No. Item No. Item No.
Coding B
1 PVC
2
3 1 m 771-9995/206-103 771-9995/206-105 771-9995/206-107
4 2 m 771-9995/206-203 771-9995/206-205 771-9995/206-207
5 3 m 771-9995/206-303 771-9995/206-305 771-9995/206-307
4 m 771-9995/206-403 771-9995/206-405 771-9995/206-407
5 m 771-9995/206-503 771-9995/206-505 771-9995/206-507
<_____ 69 _____>
<______ 55 ______> 6 m 771-9995/206-603 771-9995/206-605 771-9995/206-607
<___ 47 ___> 8 m 771-9995/206-803 771-9995/206-805 771-9995/206-807
771-9995/206-703
7 m
771-9995/206-707
771-9995/206-705
> 9 <
<_____________________________________ L _____________________________________>
Item numbers overview for other cable lengths
Position 1 – 3 - 4 5 6 7 / 8 9 10 - 11 12 13

gray 771 - 9 9 9 5 / 0 0 6 - 1 0 3
light green 771 - 9 9 9 5 / 0 0 6 - 1 0 5
pink 771 - 9 9 9 5 / 0 0 6 - 1 0 7
The item numbers listed above correspond to the following cable version:
2
Interconnecting cable, 5-pole, socket – plug, PVC control line, 5 x 1.5 mm , 1 m long
The 9th position defines whether it is a PVC or halogen-free cable. For example, an halogen-free cable with pink connectors has the following item number: 771-9995/016-107.
The 10th position defines the cable cross-section. For example, a 5 x 1.5 mm cable with light green connectors has the following item number: 771-9995/006-105.
2
The 11th position defines the cable length. For example, a 5-meter cable with gray connectors has the following item number: 771-9995/006-503.
WINSTA — perfectly plugged!
®
