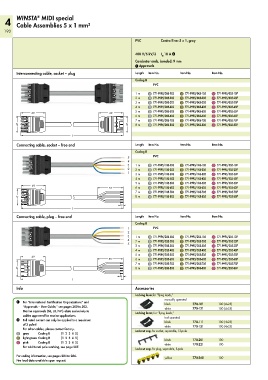

Page 192 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

®
4 WINSTA MIDI special
Cable Assemblies 5 x 1 mm²
190
PVC Control line: 5 x 1, gray

400 V/6 kV/3 I 10 A 2
N
Conductor ends, bonded: 9 mm
1 Approvals
Interconnecting cable, socket – plug Length Item No. Item No. Item No.
Coding B
PVC
1 m 771-9995/005-103 771-9995/005-105 771-9995/005-107
2 m 771-9995/005-203 771-9995/005-205 771-9995/005-207
3 m 771-9995/005-303 771-9995/005-305 771-9995/005-307
4 m 771-9995/005-403 771-9995/005-405 771-9995/005-407
5 m 771-9995/005-503 771-9995/005-505 771-9995/005-507
<_____ 69 _____> <_____ 69 _____>
6 m 771-9995/005-603 771-9995/005-605 771-9995/005-607
<___ 47 ___> <___ 47 ___> 8 m 771-9995/005-803 771-9995/005-805 771-9995/005-807
771-9995/005-705
7 m
771-9995/005-707
771-9995/005-703
<_____________________________________ L _____________________________________>
Connecting cable, socket – free end Length Item No. Item No. Item No.
Coding B
5 PVC
4
3 1 m 771-9995/105-103 771-9995/105-105 771-9995/105-107
2 2 m 771-9995/105-203 771-9995/105-205 771-9995/105-207
1 3 m 771-9995/105-303 771-9995/105-305 771-9995/105-307
4 m 771-9995/105-403 771-9995/105-405 771-9995/105-407
5 m 771-9995/105-503 771-9995/105-505 771-9995/105-507
<_____ 69 _____> <______ 55 ______> 6 m 771-9995/105-603 771-9995/105-605 771-9995/105-607
<___ 47 ___> 7 m 771-9995/105-703 771-9995/105-705 771-9995/105-707
771-9995/105-803
771-9995/105-805
771-9995/105-807
8 m
> 9 <
<_____________________________________ L _____________________________________>
Connecting cable, plug – free end Length Item No. Item No. Item No.
Coding B
1 PVC
2
3 1 m 771-9995/205-103 771-9995/205-105 771-9995/205-107
4 2 m 771-9995/205-203 771-9995/205-205 771-9995/205-207
5 3 m 771-9995/205-303 771-9995/205-305 771-9995/205-307
4 m 771-9995/205-403 771-9995/205-405 771-9995/205-407
5 m 771-9995/205-503 771-9995/205-505 771-9995/205-507
<_____ 69 _____>
<______ 55 ______> 6 m 771-9995/205-603 771-9995/205-605 771-9995/205-607
<___ 47 ___> 8 m 771-9995/205-803 771-9995/205-805 771-9995/205-807
771-9995/205-705
771-9995/205-707
771-9995/205-703
7 m
> 9 <
<_____________________________________ L _____________________________________>
Info Accessories
Locking lever,for “flying leads,”
manually operated
1 For “International Certification Organizations” and black 770-101 100 (4x25)
“Approvals – User Guide,” see pages 300 to 303. white 770-121 100 (4x25)
Marine approvals (GL, LR, NV) relate exclusively to Locking lever, for “flying leads,”
cables approved for marine applications. tool operated
2 Full rated current can only be applied to a maximum black 770-111 100 (4x25)
of 3 poles! 770-131
white
For other cables, please contact factory. Lockout cap, for socket, separable, 12-pole 100 (4x25)
gray Coding B (1 2 3 4 5)
light green Coding B (1 2 3 4 5) black 770-201 100
pink Coding B (1 2 3 4 5) white 770-221 100
For additional pole marking, see page 287. Lockout cap, for plug, separable, 5-pole

For coding information, see pages 284 to 286. yellow 770-360 100
Fire load data available upon request.
