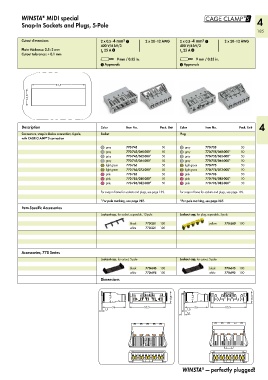

Page 187 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

!

WINSTA MIDI special 4
®
Snap-In Sockets and Plugs, 5-Pole
185
Cutout dimensions 2 x 0.5–4 mm² 1 2 x 20–12 AWG 2 x 0.5–4 mm² 1 2 x 20–12 AWG
400 V/6 kV/3 400 V/6 kV/3
Plate thickness: 0.5–2 mm I 25 A 3 I 25 A 3
Cutout tolerance: + 0.1 mm N N
L 9 mm / 0.35 in. L 9 mm / 0.35 in.
2 Approvals 2 Approvals

<________________52,5________________>
<__16,6__>

4
Description Color Item No. Pack. Unit Color Item No. Pack. Unit
Connectors, snap-in device connection, 5-pole, Socket Plug
with CAGE CLAMP S connection
®
gray 770-745 50 gray 770-755 50
gray 770-745/060-000* 50 gray 770-755/060-000* 50
gray 770-745/062-000* 50 gray 770-755/062-000* 50
gray 770-745/064-000* 50 gray 770-755/064-000* 50
light green 770-765 50 light green 770-775 50
light green 770-765/073-000* 50 light green 770-775/073-000* 50
pink 770-785 50 pink 770-795 50
pink 770-785/080-000* 50 pink 770-795/080-000* 50
pink 770-785/082-000* 50 pink 770-795/082-000* 50
For snap in frame for sockets and plugs, see page 139. For snap in frame for sockets and plugs, see page 139.

*For pole marking, see page 287. *For pole marking, see page 287.
Item-Specific Accessories
Lockout cap, for socket, separable, 12-pole Lockout cap, for plug, separable, 5-pole
black 770-201 100 yellow 770-360 100
white 770-221 100

Accessories, 770 Series
Lockout cap, for cutout, 5-pole Lockout cap, for cutout, 5-pole

black 770-645 100 black 770-645 100
white 770-695 100 white 770-695 100
Dimensions

<16,4> <18,5_> <16,4> <18,5_>

<_____36______> <_________55,5__________> <_____36______> <_________55,5__________>
1,5
1,5
) <__ ) <__
5,1
) <__

WINSTA — perfectly plugged!
®
