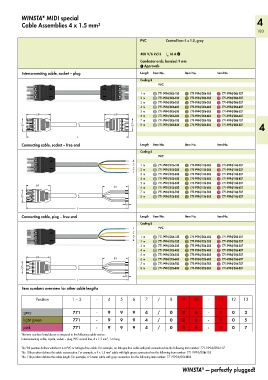

Page 185 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

WINSTA MIDI special 4
®
Cable Assemblies 4 x 1.5 mm²
183
PVC Control line: 4 x 1.5, gray

400 V/6 kV/3 I 16 A 2
N
Conductor ends, bonded: 9 mm
1 Approvals
Interconnecting cable, socket – plug Length Item No. Item No. Item No.
Coding B
PVC
1 m 771-9994/006-103 771-9994/006-105 771-9994/006-107
2 m 771-9994/006-203 771-9994/006-205 771-9994/006-207
3 m 771-9994/006-303 771-9994/006-305 771-9994/006-307
4 m 771-9994/006-403 771-9994/006-405 771-9994/006-407
5 m 771-9994/006-503 771-9994/006-505 771-9994/006-507
<_____69______> <_____69______> 6 m 771-9994/006-603 771-9994/006-605 771-9994/006-607
<__37__> <__37__> 7 m 771-9994/006-703 771-9994/006-705 771-9994/006-707 4
8 m
771-9994/006-807
771-9994/006-805
771-9994/006-803
<_____________________________________ L _____________________________________>
Connecting cable, socket – free end Length Item No. Item No. Item No.
Coding B
PVC
4
3 1 m 771-9994/106-103 771-9994/106-105 771-9994/106-107
2 2 m 771-9994/106-203 771-9994/106-205 771-9994/106-207
1
3 m 771-9994/106-303 771-9994/106-305 771-9994/106-307
4 m 771-9994/106-403 771-9994/106-405 771-9994/106-407
5 m 771-9994/106-503 771-9994/106-505 771-9994/106-507
<_____69______> <______ 55 ______> 6 m 771-9994/106-603 771-9994/106-605 771-9994/106-607
<__37__> 7 m 771-9994/106-703 771-9994/106-705 771-9994/106-707
771-9994/106-803
8 m
771-9994/106-805
771-9994/106-807
> 9 <
<_____________________________________ L _____________________________________>
Connecting cable, plug – free end Length Item No. Item No. Item No.
Coding B
1 PVC
2
3 1 m 771-9994/206-103 771-9994/206-105 771-9994/206-107
4 2 m 771-9994/206-203 771-9994/206-205 771-9994/206-207
3 m 771-9994/206-303 771-9994/206-305 771-9994/206-307
4 m 771-9994/206-403 771-9994/206-405 771-9994/206-407
5 m 771-9994/206-503 771-9994/206-505 771-9994/206-507
<_____69______> <______ 55 ______> 6 m 771-9994/206-603 771-9994/206-605 771-9994/206-607
<__37__> 7 m 771-9994/206-703 771-9994/206-705 771-9994/206-707
771-9994/206-807
771-9994/206-805
8 m
771-9994/206-803
> 9 <
<_____________________________________ L _____________________________________>
Item numbers overview for other cable lengths
Position 1 – 3 - 4 5 6 7 / 8 9 10 - 11 12 13

gray 771 - 9 9 9 4 / 0 0 6 - 1 0 3
light green 771 - 9 9 9 4 / 0 0 6 - 1 0 5
pink 771 - 9 9 9 4 / 0 0 6 - 1 0 7
The item numbers listed above correspond to the following cable version:
2
Interconnecting cable, 4-pole, socket – plug, PVC control line, 4 x 1.5 mm , 1 m long
The 9th position defines whether it is a PVC or halogen-free cable. For example, an halogen-free cable with pink connectors has the following item number: 771-9994/016-107.
The 10th position defines the cable cross-section. For example, a 4 x 1.5 mm cable with light green connectors has the following item number: 771-9994/006-105.
2
The 11th position defines the cable length. For example, a 5-meter cable with gray connectors has the following item number: 771-9994/006-503.
WINSTA — perfectly plugged!
®
