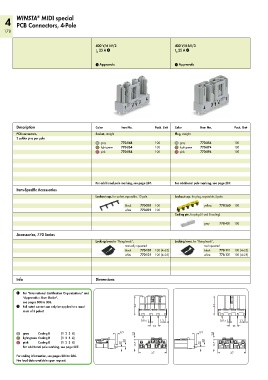

4 WINSTA MIDI special
PCB Connectors, 4-Pole
178

400 V/6 kV/3 400 V/6 kV/3
I 25 A 2 I 25 A 2
N
N
1 Approvals 1 Approvals

Description Color Item No. Pack. Unit Color Item No. Pack. Unit
PCB connectors, Socket, straight Plug, straight
2 solder pins per pole
gray 770-844 100 gray 770-854 100
light green 770-864 100 light green 770-874 100
pink 770-884 100 pink 770-894 100

For additional pole marking, see page 287. For additional pole marking, see page 287.
Item-Specific Accessories
Lockout cap, for socket, separable, 12-pole Lockout cap, for plug, separable, 5-pole
black 770-201 100 yellow 770-360 100
white 770-221 100
Coding pin, for plug (A and B coding)
gray 770-401 100

Accessories, 770 Series
Locking lever,for “flying leads”, Locking lever, for “flying leads”,
manually operated tool operated
black 770-101 100 (4x25) black 770-111 100 (4x25)
white 770-121 100 (4x25) white 770-131 100 (4x25)

Info Dimensions

1 For “International Certification Organizations” and
“Approvals — User Guide”,
see pages 300 to 303.
2 Full rated current can only be applied to a maxi- <____26____> <____26____>
mum of 3 poles!
0,8 x 1 1,3 0,8 x 1 1,3
_____> < __> ( _____> < __> (
> 10 < > 10 <
3,5
3,5
gray Coding B (1 2 3 4) > <__ 2,9 <__ > <__ 2,9 <__
light green Coding B (1 2 3 4)
pink Coding B (1 2 3 4) 2,5 <__ 2,8 > <__ 2,5 <__ 2,8 <__
For additional pole marking, see page 287. > 11,7 > 11,7
> >
For coding information, see pages 284 to 286. <_______37_______> <_______37_______>
Fire load data available upon request.
