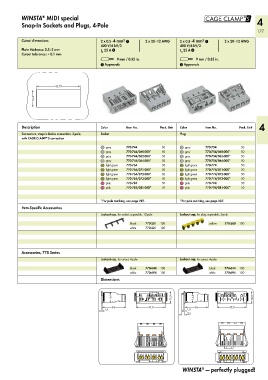

Page 179 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

!

WINSTA MIDI special 4
®
Snap-In Sockets and Plugs, 4-Pole
177
Cutout dimensions 2 x 0.5–4 mm² 1 2 x 20–12 AWG 2 x 0.5–4 mm² 1 2 x 20–12 AWG
400 V/6 kV/3 400 V/6 kV/3
Plate thickness: 0.5–2 mm I 25 A 3 I 25 A 3
Cutout tolerance: + 0.1 mm N N
L 9 mm / 0.35 in. L 9 mm / 0.35 in.
2 Approvals 2 Approvals

<____________42,75____________>
<__16,6__>

4
Description Color Item No. Pack. Unit Color Item No. Pack. Unit
Connectors, snap-in device connection, 3-pole, Socket Plug
with CAGE CLAMP S connection
®
gray 770-744 50 gray 770-754 50
gray 770-744/060-000* 50 gray 770-754/060-000* 50
gray 770-744/062-000* 50 gray 770-754/062-000* 50
gray 770-744/064-000* 50 gray 770-754/064-000* 50
light green 770-764 50 light green 770-774 50
light green 770-764/071-000* 50 light green 770-774/071-000* 50
light green 770-764/072-000* 50 light green 770-774/072-000* 50
light green 770-764/073-000* 50 light green 770-774/073-000* 50
pink 770-784 50 pink 770-794 50
pink 770-784/081-000* 50 pink 770-794/081-000* 50

*For pole marking, see page 287. *For pole marking, see page 287.
Item-Specific Accessories
Lockout cap, for socket, separable, 12-pole Lockout cap, for plug, separable, 5-pole
black 770-201 100 yellow 770-360 100
white 770-221 100

Accessories, 770 Series
Lockout cap, for cutout, 4-pole Lockout cap, for cutout, 4-pole

black 770-644 100 black 770-644 100
white 770-694 100 white 770-694 100
Dimensions

<16,4> <18,5_> <16,4> <18,5_>

<_____36______> <_______45,5_______> <_____36______> <_______45,5_______>
1,5
1,5
) <__ ) <__
5,1
) <__

WINSTA — perfectly plugged!
®
