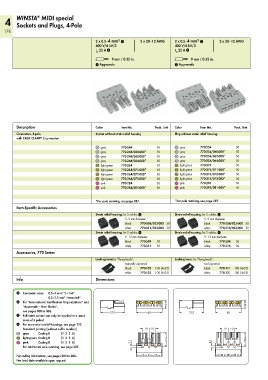

4 WINSTA MIDI special
Sockets and Plugs, 4-Pole
176

2 x 0.5–4 mm² 1 2 x 20–12 AWG 2 x 0.5–4 mm² 1 2 x 20–12 AWG
400 V/6 kV/3 400 V/6 kV/3
I 25 A 3 I 25 A 3
N
N
L 9 mm / 0.35 in. L 9 mm / 0.35 in.
2 Approvals 2 Approvals

Description Color Item No. Pack. Unit Color Item No. Pack. Unit
Connectors, 4-pole, Socket without strain relief housing Plug without strain relief housing
with CAGE CLAMP S connection
®
gray 770-244 50 gray 770-254 50
gray 770-244/060-000* 50 gray 770-254/060-000* 50
gray 770-244/062-000* 50 gray 770-254/062-000* 50
gray 770-244/064-000* 50 gray 770-254/064-000* 50
light green 770-264 50 light green 770-274 50
light green 770-264/071-000* 50 light green 770-274/071-000* 50
light green 770-264/072-000* 50 light green 770-274/072-000* 50
light green 770-264/073-000* 50 light green 770-274/073-000* 50
pink 770-284 50 pink 770-294 50
pink 770-284/081-000* 50 pink 770-294/081-000* 50

*For pole marking, see page 287. *For pole marking, see page 287.
Item-Specific Accessories
Strain relief housing, for 2 cables, 4 Strain relief housing, for 2 cables, 4
5–9 mm diameter 5–9 mm diameter
black 770-504/023-000 50 black 770-504/023-000 50
white 770-514/023-000 50 white 770-514/023-000 50
Strain relief housing, for 2 cables, 4 Strain relief housing, for 2 cables, 4
9–13 mm diameter 9–13 mm diameter
black 770-504 50 black 770-504 50
white 770-514 50 white 770-514 50
Accessories, 770 Series
Locking lever,for “flying leads”, Locking lever, for “flying leads”,
manually operated tool operated
black 770-101 100 (4x25) black 770-111 100 (4x25)
white 770-121 100 (4x25) white 770-131 100 (4x25)
Info Dimensions

1 Conductor sizes: 0.5–4 mm² “s + f-st”
0.5–2.5 mm² “stranded”
2 For “International Certification Organizations” and (12,9)
“Approvals — User Guide”, (12,9)
see pages 300 to 303. <_____37,5_____> <_______40_______> <_____37,5_____> <_______40_______>
3 Full rated current can only be applied to a maxi-
mum of 3 poles!
4 For more strain relief housings, see page 122.
Standard printing (without suffix number) > 10 10 < > 10 10 <
gray Coding B (1 2 3 4)
light green Coding B (1 2 3 4) <__22,3__> <__22,3__>
pink Coding B (1 2 3 4) 3,1 3,1
For additional pole marking, see page 287. > <__ > <__

For coding information, see pages 284 to 286.
Fire load data available upon request.
