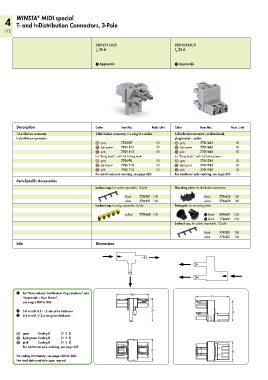

4 WINSTA MIDI special
T- and h-Distribution Connectors, 3-Pole
172

250 V/4 kV/3 250 V/4 kV/3
I 25 A I 25 A
N N

1 Approvals 1 Approvals

Description Color Item No. Pack. Unit Color Item No. Pack. Unit
T-distribution connector T-distribution connector, 1 x plug/2 x socket h-distribution connector, unidirectional,
h-distribution connector plug/socket – socket
gray 770-967 50 gray 770-1661 50
light green 770-1612 50 light green 770-1662 50
pink 770-1613 50 pink 770-1663 50
for “flying leads”, with 3rd locking lever for “flying leads”, with 3rd locking lever
gray 770-970 50 gray 770-1761 50
light green 770-1712 50 light green 770-1762 50
pink 770-1713 50 pink 770-1763 50
For additional pole marking, see page 287. For additional pole marking, see page 287.
Item-Specific Accessories
Lockout cap, for socket, separable, 12-pole Mounting plate, for distribution connectors

black 770-201 100 black 770-623 100
white 770-221 100 white 770-673 100
Lockout cap, for plug, separable, 5-pole Fixing pin, for mounting plates

yellow 770-360 100 2 black 890-601 250
3 black 770-601 250
Lockout cap, for socket, separable, 12-pole

black 770-201 100
white 770-221 100
Info Dimensions

1 For “International Certification Organizations” and <_________48,9_________>
“Approvals — User Guide”, <_________51_________>
see pages 300 to 303.

2 5.0 mm Ø, 0.2–1.2 mm plate thickness <_____36,1_____> <____32,7____>
3 6.0 mm Ø, 1–2.5 mm plate thickness

gray Coding B (1 2 3)
light green Coding B (1 2 3)
pink Coding B (1 2 3)
For additional pole marking, see page 287. <_____34_____>

For coding information, see pages 284 to 286. <____30____>
Fire load data available upon request.
