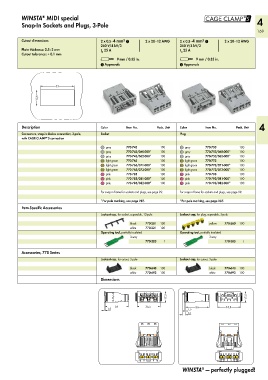

Page 171 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

!

WINSTA MIDI special 4
®
Snap-In Sockets and Plugs, 3-Pole
169
Cutout dimensions 2 x 0.5–4 mm² 1 2 x 20–12 AWG 2 x 0.5–4 mm² 1 2 x 20–12 AWG
250 V/4 kV/3 250 V/4 kV/3
Plate thickness: 0.5–2 mm I 25 A I 25 A
Cutout tolerance: + 0.1 mm N N
L 9 mm / 0.35 in. L 9 mm / 0.35 in.
2 Approvals 2 Approvals

<__________33__________>
<__15,6__>

4
Description Color Item No. Pack. Unit Color Item No. Pack. Unit
Connectors, snap-in device connection, 3-pole, Socket Plug
with CAGE CLAMP S connection
®
gray 770-743 100 gray 770-753 100
gray 770-743/060-000* 100 gray 770-753/060-000* 100
gray 770-743/062-000* 100 gray 770-753/062-000* 100
light green 770-763 100 light green 770-773 100
light green 770-763/071-000* 100 light green 770-773/071-000* 100
light green 770-763/073-000* 100 light green 770-773/073-000* 100
pink 770-783 100 pink 770-793 100
pink 770-783/081-000* 100 pink 770-793/081-000* 100
pink 770-783/082-000* 100 pink 770-793/082-000* 100
For snap in frame for sockets and plugs, see page 99. For snap in frame for sockets and plugs, see page 99.

*For pole marking, see page 287. *For pole marking, see page 287.
Item-Specific Accessories
Lockout cap, for socket, separable, 12-pole Lockout cap, for plug, separable, 5-pole
black 770-201 100 yellow 770-360 100
white 770-221 100
Operating tool, partially insulated Operating tool, partially insulated
3-way 3-way
770-383 1 770-383 1

Accessories, 770 Series
Lockout cap, for cutout, 3-pole Lockout cap, for cutout, 3-pole

black 770-643 100 black 770-643 100
white 770-693 100 white 770-693 100
Dimensions

<15,4> <17,5> <17,5>

<_____36______> <____35,5_____> <_____36______> <____35,5_____>
1,5
1,5
> <__ ) <__
5,1
> <__

WINSTA — perfectly plugged!
®
