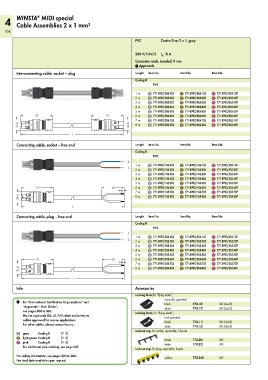

4 WINSTA MIDI special
Cable Assemblies 2 x 1 mm²
166
PVC Control line: 2 x 1, gray

250 V/4 kV/3 I 10 A
N
Conductor ends, bonded: 9 mm
1 Approvals
Interconnecting cable, socket – plug Length Item No. Item No. Item No.
Coding B
PVC
1 m 771-8992/005-103 771-8992/005-105 771-8992/005-107
2 m 771-8992/005-203 771-8992/005-205 771-8992/005-207
3 m 771-8992/005-303 771-8992/005-305 771-8992/005-307
4 m 771-8992/005-403 771-8992/005-405 771-8992/005-407
5 m 771-8992/005-503 771-8992/005-505 771-8992/005-507
<________ 71_________> <________ 71_________> 6 m 771-8992/005-603 771-8992/005-605 771-8992/005-607
< < 7 m 771-8992/005-703 771-8992/005-705 771-8992/005-707
24,6 24,6 8 m 771-8992/005-803 771-8992/005-805 771-8992/005-807
> >
<_____________________________________ L ____________________________________>
Connecting cable, socket – free end Length Item No. Item No. Item No.
Coding B
PVC
2
1 m 771-8992/105-103 771-8992/105-105 771-8992/105-107
1 2 m 771-8992/105-203 771-8992/105-205 771-8992/105-207
3 m 771-8992/105-303 771-8992/105-305 771-8992/105-307
4 m 771-8992/105-403 771-8992/105-405 771-8992/105-407
5 m 771-8992/105-503 771-8992/105-505 771-8992/105-507
<________ 71_________> <_____ 35_____> 6 m 771-8992/105-603 771-8992/105-605 771-8992/105-607
< > 9 < 7 m 771-8992/105-703 771-8992/105-705 771-8992/105-707
24,6 8 m 771-8992/105-803 771-8992/105-805 771-8992/105-807
>
<_____________________________________ L ____________________________________>
Connecting cable, plug – free end Length Item No. Item No. Item No.
Coding B
PVC
1
1 m 771-8992/205-103 771-8992/205-105 771-8992/205-107
2 2 m 771-8992/205-203 771-8992/205-205 771-8992/205-207
3 m 771-8992/205-303 771-8992/205-305 771-8992/205-307
4 m 771-8992/205-403 771-8992/205-405 771-8992/205-407
5 m 771-8992/205-503 771-8992/205-505 771-8992/205-507
<________ 71_________> <_____ 35_____> 6 m 771-8992/205-603 771-8992/205-605 771-8992/205-607
< > 9 < 7 m 771-8992/205-703 771-8992/205-705 771-8992/205-707
24,6 8 m 771-8992/205-803 771-8992/205-805 771-8992/205-807
>
<_____________________________________ L ____________________________________>
Info Accessories
Locking lever,for “flying leads”,
manually operated
1 For “International Certification Organizations” and black 770-101 100 (4x25)
“Approvals — User Guide”, white 770-121 100 (4x25)
see pages 300 to 303. Locking lever, for “flying leads”,
Marine approvals (GL, LR, NV) relate exclusively to tool operated
cables approved for marine applications.
For other cables, please contact factory. black 770-111 100 (4x25)
white 770-131 100 (4x25)
Lockout cap, for socket, separable, 12-pole
gray Coding B (1 2)
light green Coding B (1 2) black 770-201 100
pink Coding B (1 2) white 770-221 100
For additional pole marking, see page 287. Lockout cap, for plug, separable, 5-pole

For coding information, see pages 284 to 286. yellow 770-360 100
Fire load data available upon request.
