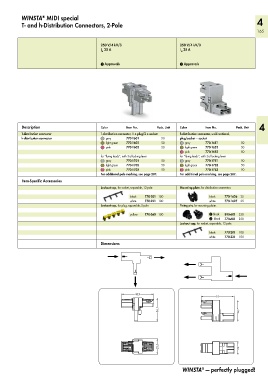

Page 167 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

WINSTA MIDI special 4
®
T- and h-Distribution Connectors, 2-Pole
165

250 V/4 kV/3 250 V/4 kV/3
I 25 A I 25 A
N N

1 Approvals 1 Approvals

4
Description Color Item No. Pack. Unit Color Item No. Pack. Unit
T-distribution connector T-distribution connector, 1 x plug/2 x socket h-distribution connector, unidirectional,
h-distribution connector gray 770-1601 50 plug/socket – socket
light green 770-1602 50 gray 770-1651 50
pink 770-1603 50 light green 770-1652 50
pink 770-1653 50
for “flying leads”, with 3rd locking lever for “flying leads”, with 3rd locking lever
gray 770-1701 50 gray 770-1751 50
light green 770-1702 50 light green 770-1752 50
pink 770-1703 50 pink 770-1753 50
For additional pole marking, see page 287. For additional pole marking, see page 287.
Item-Specific Accessories
Lockout cap, for socket, separable, 12-pole Mounting plate, for distribution connectors

black 770-201 100 black 770-1626 25
white 770-221 100 white 770-1627 25
Lockout cap, for plug, separable, 5-pole Fixing pin, for mounting plates

yellow 770-360 100 2 black 890-601 250
3 black 770-601 250
Lockout cap, for socket, separable, 12-pole

black 770-201 100
white 770-221 100
Dimensions

<_________48,9_________>
<_________51_________>
<_____36,1_____> <____32,7____>

<__23,5__> <__20__>

WINSTA — perfectly plugged!
®
