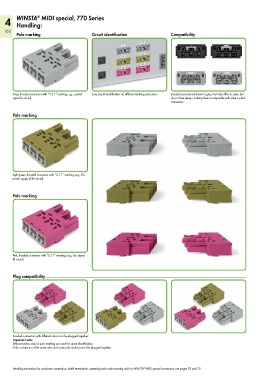

4 WINSTA MIDI special, 770 Series
Handling:
162
Pole marking Circuit identification Compatibility
Gray, B-coded connector with “3 2 1” marking; e.g., control Easy circuit identification via different marking and colors B-coded connectors (shown in gray) not only differ in color, but
signal (A circuit) also in their design, making them incompatible with other coded
connectors.
Pole marking
Light green, B-coded connector with “3 2 1” marking; e.g., DC
power supply (24V circuit)
Pole marking
Pink, B-coded connector with “3 2 1” marking; e.g., bus signal
(B circuit)
Plug compatibility
B-coded connectors with different colors can be plugged together.
Important note:
Different colors and/or pole marking are used for circuit identification.
Only connectors of the same color and same pole marking must be plugged together.
Handling instructions for conductor connection, shield termination, operating tools and mounting aids for WINSTA MIDI special connectors, see pages 78 and 79.
®
