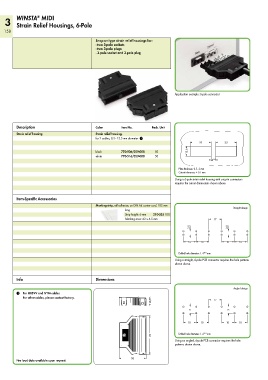

3 WINSTA MIDI
Strain Relief Housings, 6-Pole
158
Snap-on type strain relief housings for:
- two 3-pole sockets
- two 3-pole plugs
- 3-pole socket and 3-pole plug

Application example: 6-pole connector

Description Color Item No. Pack. Unit
Strain relief housing Strain relief housing,
for 2 cables, 8.5–13.5 mm diameter 1
<_____33_____> <_____33_____>
black 770-506/029-000 50 ( 15,6 )
white 770-516/029-000 50
> 4 +0,1 <
Plate thickness: 0.5–2 mm
Cutout tolerance: + 0.1 mm
Using a 6-pole strain relief housing with snap-in connectors
requires the cutout dimensions shown above.

Item-Specific Accessories
Marking strip, self-adhesive, on DIN A4 carrier card, 182 mm Straight design
long
Strip height: 6 mm 210-333 100
Marking area: 62 x 6.5 mm <__17__>
2,8 <__ 2,8 <__

> >
<__10__><__10__> <__10__><__10__>

Drilled hole diameter: 1.4 mm
±0.1
Using a straight, 6-pole PCB connector requires the hole patterns
shown above.

Info Dimensions

Angled design
1 For H05VV and NYM cables
For other cables, please contact factory. <__17__>
(16,8) < <

5 5
> <__10__><__10__>
>
____________ 72 ____________> Using an angled, 6-pole PCB connector requires the hole
<__10__><__10__>
Drilled hole diameter: 1.4 mm
±0.1
patterns shown above.

Fire load data available upon request. <_______ 50 _______> <
