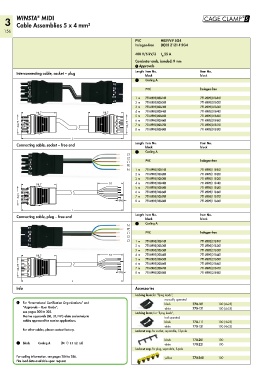

3 WINSTA MIDI
Cable Assemblies 5 x 4 mm²
156
PVC H05VV-F 5G4
halogen-free (H)05 Z1Z1-F 5G4
400 V/6 kV/3 I 25 A
N
Conductor ends, bonded: 9 mm
1 Approvals
Interconnecting cable, socket – plug Length Item No. Item No.

black
black
Coding A
PVC halogen-free
1 m 771-8995/008-101 771-8995/018-101
2 m 771-8995/008-201 771-8995/018-201
3 m 771-8995/008-301 771-8995/018-301
4 m 771-8995/008-401 771-8995/018-401
98,7 _________>
98,7 _________>
<_________
54,75 __> <_________ 54,75 __> 5 m 771-8995/008-501 771-8995/018-501
771-8995/008-601
771-8995/018-601
6 m
771-8995/018-701
7 m
771-8995/008-701
<__ <__ 8 m 771-8995/008-801 771-8995/018-801
<_____________________________________ L _____________________________________>
Connecting cable, socket – free end Length Item No. Item No.
black

black
Coding A
L3
L2
L1 PVC halogen-free
PE
N 1 m 771-8995/108-101 771-8995/118-101
2 m 771-8995/108-201 771-8995/118-201
3 m 771-8995/108-301 771-8995/118-301
4 m
771-8995/118-401
771-8995/108-401
__> <_________ 98,7 _________> <______ 55 ______> 5 m 771-8995/108-501 771-8995/118-501
771-8995/108-601
771-8995/118-601
6 m
54,6 7 m 771-8995/108-701 771-8995/118-701
<__ > 9 8 < 8 m 771-8995/108-801 771-8995/118-801
<_____________________________________ L _____________________________________>
Connecting cable, plug – free end Length Item No. Item No.

black
black
Coding A
N
PE
L1 PVC halogen-free
L2
L3 1 m 771-8995/208-101 771-8995/218-101
2 m 771-8995/208-201 771-8995/218-201
3 m 771-8995/208-301 771-8995/218-301
<_________ 98,7 _________> <______ 55 ______> 4 m 771-8995/208-401 771-8995/218-401
771-8995/218-501
771-8995/208-501
5 m
54,75 __> 6 m 771-8995/208-601 771-8995/218-601
771-8995/218-701
771-8995/208-701
7 m
<__ > 9 8 < 8 m 771-8995/208-801 771-8995/218-801
<_____________________________________ L _____________________________________>
Info Accessories
Locking lever,for “flying leads”,
manually operated
1 For “International Certification Organizations” and black 770-101 100 (4x25)
“Approvals — User Guide”, white 770-121 100 (4x25)
see pages 300 to 303. Locking lever, for “flying leads”,
Marine approvals (GL, LR, NV) relate exclusively to tool operated
cables approved for marine applications. black 770-111 100 (4x25)
white 770-131 100 (4x25)
For other cables, please contact factory. Lockout cap, for socket, separable, 12-pole
black 770-201 100
black Coding A (N 3 L1 L2 L3) white 770-221 100
Lockout cap, for plug, separable, 5-pole

For coding information, see pages 284 to 286. yellow 770-360 100
Fire load data available upon request.
