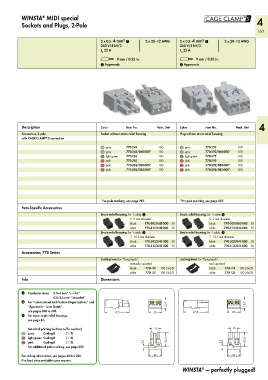

Page 165 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

!

WINSTA MIDI special 4
®
Sockets and Plugs, 2-Pole
163

2 x 0.5–4 mm² 1 2 x 20–12 AWG 2 x 0.5–4 mm² 1 2 x 20–12 AWG
250 V/4 kV/3 250 V/4 kV/3
I 25 A I 25 A
N
N
L 9 mm / 0.35 in. L 9 mm / 0.35 in.
2 Approvals 2 Approvals

4
Description Color Item No. Pack. Unit Color Item No. Pack. Unit
Connectors, 2-pole, Socket without strain relief housing Plug without strain relief housing
with CAGE CLAMP S connection
®
gray 770-242 100 gray 770-252 100
gray 770-242/060-000* 100 gray 770-252/060-000* 100
light green 770-262 100 light green 770-272 100
pink 770-282 100 pink 770-292 100
pink 770-282/080-000* 100 pink 770-292/080-000* 100
pink 770-282/082-000* 100 pink 770-292/082-000* 100

*For pole marking, see page 287. *For pole marking, see page 287.
Item-Specific Accessories
Strain relief housing, for 1 cable, 3 Strain relief housing, for 1 cable, 3
5–9 mm diameter 5–9 mm diameter
black 770-502/042-000 50 black 770-502/042-000 50
white 770-512/042-000 50 white 770-512/042-000 50
Strain relief housing, for 1 cable, 3 Strain relief housing, for 1 cable, 3
7–10.5 mm diameter 7–10.5 mm diameter
black 770-502/041-000 50 black 770-502/041-000 50
white 770-512/041-000 50 white 770-512/041-000 50
Accessories, 770 Series
Locking lever,for “flying leads”, Locking lever, for “flying leads”,
manually operated tool operated
black 770-101 100 (4x25) black 770-111 100 (4x25)
white 770-121 100 (4x25) white 770-131 100 (4x25)
Info Dimensions

1 Conductor sizes: 0.5–4 mm² “s + f-st”
0.5–2.5 mm² “stranded” < <
2 For “International Certification Organizations” and
“Approvals — User Guide”, 12,9 12,9
see pages 300 to 303. <_____ 37,5_____> <_ 20 _> > <_____ 37,5_____> <_ 20 _> >
3 For more strain relief housings,
see page 84.
Standard printing (without suffix number) > 10 < > 10 <
gray Coding B (1 2)
light green Coding B (1 2) 22,3 _> 22,3 _>
pink Coding B (1 2) 3,1 <__ 3,1 <__
For additional pole marking, see page 287. <_ <_
> >
For coding information, see pages 284 to 286.
Fire load data available upon request.
WINSTA — perfectly plugged!
®
