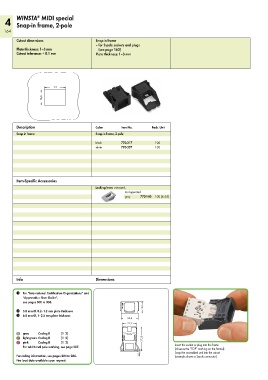

4 WINSTA MIDI special
Snap-in frame, 2-pole
164
Cutout dimensions Snap-in frame
– for 2-pole sockets and plugs
Plate thickness: 1–3 mm (see page 163)
Cutout tolerance: + 0.1 mm Plate thickness: 1–3 mm
<__ 23 __>
>
16,6
<
Description Color Item No. Pack. Unit
Snap-in frame Snap-in frame, 2-pole
black 770-317 100
white 770-337 100
Item-Specific Accessories
Locking lever, oversized,
tool operated
gray 770-140 100 (4x25)
Info Dimensions
1 For “International Certification Organizations” and
“Approvals — User Guide”,
see pages 300 to 303. _>
2 5.0 mm Ø, 0.2–1.2 mm plate thickness <_18,5
3 6.0 mm Ø, 1–2.5 mm plate thickness
<___25,8 ___>
<_ 22,2 _>
______>
gray Coding B (1 2)
light green Coding B (1 2)
pink Coding B (1 2) <______ 37,25
For additional pole marking, see page 287. Insert the socket or plug into the frame
(observe the “TOP” marking on the frame!).
< Snap the assembled unit into the cutout
For coding information, see pages 284 to 286. 1,5 __> (example shows a 3-pole connector).
Fire load data available upon request.
