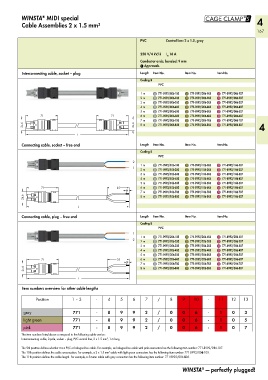

Page 169 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

!

WINSTA MIDI special 4
®
Cable Assemblies 2 x 1.5 mm²
167
PVC Control line: 2 x 1.5, gray

250 V/4 kV/3 I 16 A
N
Conductor ends, bonded: 9 mm
1 Approvals
Interconnecting cable, socket – plug Length Item No. Item No. Item No.
Coding B
PVC
1 m 771-8992/006-103 771-8992/006-105 771-8992/006-107
2 m 771-8992/006-203 771-8992/006-205 771-8992/006-207
3 m 771-8992/006-303 771-8992/006-305 771-8992/006-307
4 m 771-8992/006-403 771-8992/006-405 771-8992/006-407
5 m 771-8992/006-503 771-8992/006-505 771-8992/006-507
<________ 71_________> <________ 71_________> 6 m 771-8992/006-603 771-8992/006-605 771-8992/006-607
< < 7 m 771-8992/006-703 771-8992/006-705 771-8992/006-707
24,6 24,6 8 m 771-8992/006-803 771-8992/006-805 771-8992/006-807 4
> >
<_____________________________________ L ____________________________________>
Connecting cable, socket – free end Length Item No. Item No. Item No.
Coding B
PVC
2
1 m 771-8992/106-103 771-8992/106-105 771-8992/106-107
1 2 m 771-8992/106-203 771-8992/106-205 771-8992/106-207
3 m 771-8992/106-303 771-8992/106-305 771-8992/106-307
4 m 771-8992/106-403 771-8992/106-405 771-8992/106-407
5 m 771-8992/106-503 771-8992/106-505 771-8992/106-507
<________ 71_________> <_____ 35_____> 6 m 771-8992/106-603 771-8992/106-605 771-8992/106-607
< > 9 < 7 m 771-8992/106-703 771-8992/106-705 771-8992/106-707
24,6 8 m 771-8992/106-803 771-8992/106-805 771-8992/106-807
>
<_____________________________________ L ____________________________________>
Connecting cable, plug – free end Length Item No. Item No. Item No.
Coding B
PVC
1
1 m 771-8992/206-103 771-8992/206-105 771-8992/206-107
2 2 m 771-8992/206-203 771-8992/206-205 771-8992/206-207
3 m 771-8992/206-303 771-8992/206-305 771-8992/206-307
4 m 771-8992/206-403 771-8992/206-405 771-8992/206-407
5 m 771-8992/206-503 771-8992/206-505 771-8992/206-507
<________ 71_________> <_____ 35_____> 6 m 771-8992/206-603 771-8992/206-605 771-8992/206-607
< > 9 < 7 m 771-8992/206-703 771-8992/206-705 771-8992/206-707
24,6 8 m 771-8992/206-803 771-8992/206-805 771-8992/206-807
>
<_____________________________________ L ____________________________________>
Item numbers overview for other cable lengths

Position 1 – 3 - 4 5 6 7 / 8 9 10 - 11 12 13

gray 771 - 8 9 9 2 / 0 0 6 - 1 0 3
light green 771 - 8 9 9 2 / 0 0 6 - 1 0 5
pink 771 - 8 9 9 2 / 0 0 6 - 1 0 7
The item numbers listed above correspond to the following cable version:
Interconnecting cable, 2-pole, socket – plug, PVC control line, 2 x 1.5 mm , 1 m long
2
The 9th position defines whether it is a PVC or halogen-free cable. For example, an halogen-free cable with pink connectors has the following item number: 771-8992/016-107.
The 10th position defines the cable cross-section. For example, a 2 x 1.5 mm cable with light green connectors has the following item number: 771-8992/006-105.
2
The 11th position defines the cable length. For example, a 5-meter cable with gray connectors has the following item number: 771-8992/006-503.
