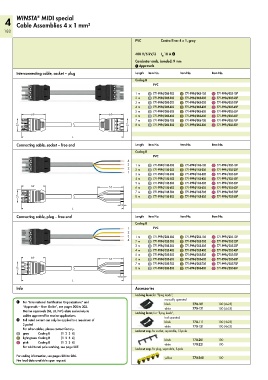

4 WINSTA MIDI special
Cable Assemblies 4 x 1 mm²
182
PVC Control line: 4 x 1, gray

400 V/6 kV/3 I 10 A 2
N
Conductor ends, bonded: 9 mm
1 Approvals
Interconnecting cable, socket – plug Length Item No. Item No. Item No.
Coding B
PVC
1 m 771-9994/005-103 771-9994/005-105 771-9994/005-107
2 m 771-9994/005-203 771-9994/005-205 771-9994/005-207
3 m 771-9994/005-303 771-9994/005-305 771-9994/005-307
4 m 771-9994/005-403 771-9994/005-405 771-9994/005-407
5 m 771-9994/005-503 771-9994/005-505 771-9994/005-507
<_____69______> <_____69______> 6 m 771-9994/005-603 771-9994/005-605 771-9994/005-607
<__37__> <__37__> 7 m 771-9994/005-703 771-9994/005-705 771-9994/005-707
8 m
771-9994/005-807
771-9994/005-805
771-9994/005-803
<_____________________________________ L _____________________________________>
Connecting cable, socket – free end Length Item No. Item No. Item No.
Coding B
PVC
4
3 1 m 771-9994/105-103 771-9994/105-105 771-9994/105-107
2 2 m 771-9994/105-203 771-9994/105-205 771-9994/105-207
1
3 m 771-9994/105-303 771-9994/105-305 771-9994/105-307
4 m 771-9994/105-403 771-9994/105-405 771-9994/105-407
5 m 771-9994/105-503 771-9994/105-505 771-9994/105-507
<_____69______> <______ 55 ______> 6 m 771-9994/105-603 771-9994/105-605 771-9994/105-607
<__37__> 7 m 771-9994/105-703 771-9994/105-705 771-9994/105-707
771-9994/105-803
771-9994/105-807
771-9994/105-805
8 m
> 9 <
<_____________________________________ L _____________________________________>
Connecting cable, plug – free end Length Item No. Item No. Item No.
Coding B
1 PVC
2
3 1 m 771-9994/205-103 771-9994/205-105 771-9994/205-107
4 2 m 771-9994/205-203 771-9994/205-205 771-9994/205-207
3 m 771-9994/205-303 771-9994/205-305 771-9994/205-307
4 m 771-9994/205-403 771-9994/205-405 771-9994/205-407
5 m 771-9994/205-503 771-9994/205-505 771-9994/205-507
<_____69______> <______ 55 ______> 6 m 771-9994/205-603 771-9994/205-605 771-9994/205-607
<__37__> 7 m 771-9994/205-703 771-9994/205-705 771-9994/205-707
771-9994/205-807
8 m
771-9994/205-805
771-9994/205-803
> 9 <
<_____________________________________ L _____________________________________>
Info Accessories
Locking lever,for “flying leads”,
manually operated
1 For “International Certification Organizations” and black 770-101 100 (4x25)
“Approvals — User Guide”, see pages 300 to 303. white 770-121 100 (4x25)
Marine approvals (GL, LR, NV) relate exclusively to Locking lever, for “flying leads”,
cables approved for marine applications. tool operated
2 Full rated current can only be applied to a maximum of black 770-111 100 (4x25)
3 poles! 770-131
white
For other cables, please contact factory. Lockout cap, for socket, separable, 12-pole 100 (4x25)
gray Coding B (1 2 3 4)
light green Coding B (1 2 3 4) black 770-201 100
pink Coding B (1 2 3 4) white 770-221 100
For additional pole marking, see page 287. Lockout cap, for plug, separable, 5-pole

For coding information, see pages 284 to 286. yellow 770-360 100
Fire load data available upon request.
