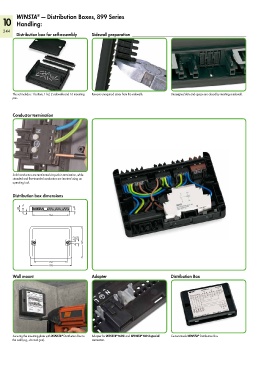

WINSTA — Distribution Boxes, 899 Series
®
10 Handling:

244
Distribution box for self-assembly Sidewall preparation

The set includes: 1 bottom, 1 lid, 2 sidewalls and 16 mounting Remove unrequired areas from the sidewalls. Unassigned slots and spaces are closed by inserting a sidewall.
pins.

Conductor termination

Solid conductors are terminated via push-in termination, while
stranded and fine-stranded conductors are inserted using an
operating tool.

Distribution box dimensions

30 <_> < 22 < 6 <_
> 1 > <____________166____________> >

<__________145__________>

6,2 <__ 9,6 <__
> >

<___________150___________>
<_______________190_______________>

Wall mount Adapter Distribution Box

Securing the mounting plate with WINSTA Distribution Box to Adapter for WINSTA MINI and WINSTA MINI special Custom-made WINSTA Distribution Box
®
®
®
®
the wall (e.g., via stud gun). connectors
