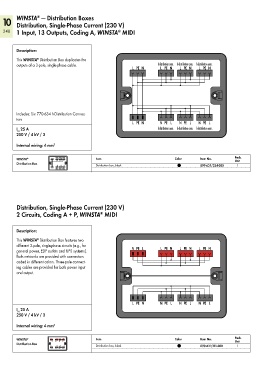

P. 250
®
10 WINSTA — Distribution Boxes
Distribution, Single-Phase Current (230 V)
®
248 1 Input, 13 Outputs, Coding A, WINSTA MIDI
Description:
This WINSTA Distribution Box duplicates the
®
outputs of a 3-pole, single-phase cable. h-distribution conn. h-distribution conn. h-distribution conn.
L PE N L PE N L PE N L PE N
Includes: Six 770-634 h-Distribution Connec-
tors
L PE N N PE L N PE L N PE L
I 25 A h-distribution conn. h-distribution conn. h-distribution conn.
N
250 V / 4 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA L PE N h-distribution conn. h-distribution conn. h-distribution conn. Item Color Item No. Unit
®
L PE N
L PE N
L PE N
Distribution Box Distribution box, black 899-631/334-000 1
L PE N N PE L N PE L N PE L
h-distribution conn. h-distribution conn. h-distribution conn.
Distribution, Single-Phase Current (230 V)
2 Circuits, Coding A + P, WINSTA MIDI
®
Description:
This WINSTA Distribution Box features two
®
different 3-pole, single-phase circuits (e.g., for
general power, EDP outlets and UPS systems). N PE L L PE N L PE N L PE N
Both networks are provided with connectors
coded in different colors. Three-pole connect-
ing cables are provided for both power input
and output.
L PE N N PE L N PE L N PE L
I 25 A
N
250 V / 4 kV / 3
Internal wiring: 4 mm 2
Pack.
®
WINSTA N PE L L PE N L PE N L PE N Item Color Item No. Unit
Distribution Box Distribution box, black 899-631/311-000 1
L PE N N PE L N PE L N PE L
