P. 255

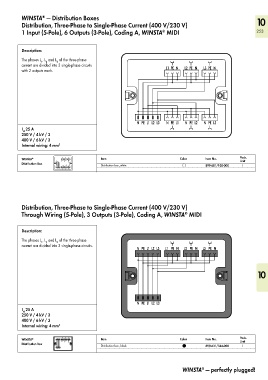

WINSTA — Distribution Boxes 10
®
Distribution, Three-Phase to Single-Phase Current (400 V/230 V)
1 Input (5-Pole), 6 Outputs (3-Pole), Coding A, WINSTA MIDI 253
®
Description:
The phases L , L and L of the three-phase
2
1
3
current are divided into 3 single-phase circuits L1 PE N L2 PE N L3 PE N
with 2 outputs each.
N PE L1 L2 L3 N PE L1 N PE L2 N PE L3
I 25 A
N
250 V / 4 kV / 3
400 V / 6 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA L1 PE N L2 PE N L3 PE N Item Color Item No. Unit
®
Distribution Box Distribution box, white 899-681/105-000 1
N PE L1 L2 L3 N PE L1 N PE L2 N PE L3
Distribution, Three-Phase to Single-Phase Current (400 V/230 V)
Through Wiring (5-Pole), 3 Outputs (3-Pole), Coding A, WINSTA MIDI
®
Description:
The phases L , L and L of the three-phase
1
3
2
current are divided into 3 single-phase circuits.
N PE L1 L2 L3 L1 PE N L2 PE N L3 PE N
10
N PE L1 L2 L3
I 25 A
N
250 V / 4 kV / 3
400 V / 6 kV / 3
Internal wiring: 4 mm 2
Pack.
®
WINSTA N PE L1 L2 L3 L1 PE N L2 PE N L3 PE N Item Color Item No. Unit
Distribution Box Distribution box, black 899-631/346-000 1
N PE L1 L2 L3
WINSTA — perfectly plugged!
®
