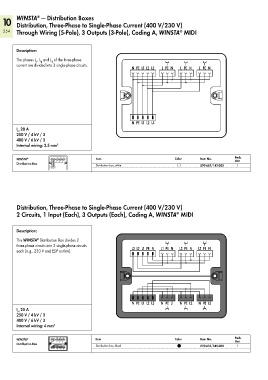

P. 256
®
10 WINSTA — Distribution Boxes
Distribution, Three-Phase to Single-Phase Current (400 V/230 V)
®
254 Through Wiring (5-Pole), 3 Outputs (3-Pole), Coding A, WINSTA MIDI
Description:
The phases L , L and L of the three-phase
2
3
1
current are divided into 3 single-phase circuits.
N PE L1 L2 L3 L PE N L PE N L PE N
N PE L1 L2 L3
I 20 A
N
250 V / 4 kV / 3
400 V / 6 kV / 3
Internal wiring: 2.5 mm 2
Pack.
WINSTA N PE L1 L2 L3 L PE N L PE N L PE N Item Color Item No. Unit
®
Distribution Box Distribution box, white 899-681/142-000 1
N PE L1 L2 L3
Distribution, Three-Phase to Single-Phase Current (400 V/230 V)
2 Circuits, 1 Input (Each), 3 Outputs (Each), Coding A, WINSTA MIDI
®
Description:
This WINSTA Distribution Box divides 2
®
three-phase circuits into 3 single-phase circuits L3 L2 L1 PE N L1 PE N L2 PE N L3 PE N
each (e.g., 230 V and EDP outlets).
N PE L1 L2 L3 N PE L1 N PE L2 N PE L3
I 25 A
N
250 V / 4 kV / 3
400 V / 6 kV / 3
Internal wiring: 4 mm 2
Pack.
®
WINSTA L3 L2 L1 PE N L1 PE N L2 PE N L3 PE N Item Color Item No. Unit
Distribution Box Distribution box, black 899-631/349-000 1
N PE L1 L2 L3 N PE L1 N PE L2 N PE L3
