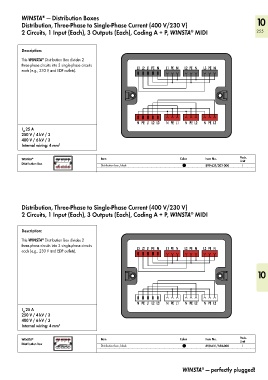

WINSTA — Distribution Boxes 10
®
Distribution, Three-Phase to Single-Phase Current (400 V/230 V)
2 Circuits, 1 Input (Each), 3 Outputs (Each), Coding A + P, WINSTA MIDI 255
®
Description:
This WINSTA Distribution Box divides 2
®
three-phase circuits into 3 single-phase circuits L3 L2 L1 PE N L1 PE N L2 PE N L3 PE N
each (e.g., 230 V and EDP outlets).
N PE L1 L2 L3 N PE L1 N PE L2 N PE L3
I 25 A
N
250 V / 4 kV / 3
400 V / 6 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA L3 L2 L1 PE N L1 PE N L2 PE N L3 PE N Item Color Item No. Unit
®
Distribution Box Distribution box, black 899-631/302-000 1
N PE L1 L2 L3 N PE L1 N PE L2 N PE L3
Distribution, Three-Phase to Single-Phase Current (400 V/230 V)
2 Circuits, 1 Input (Each), 3 Outputs (Each), Coding A + P, WINSTA MIDI
®
Description:
This WINSTA Distribution Box divides 2
®
three-phase circuits into 3 single-phase circuits L3 L2 L1 PE N L1 PE N L2 PE N L3 PE N
each (e.g., 230 V and EDP outlets).
10
N PE L1 L2 L3 N PE L1 N PE L2 N PE L3
I 25 A
N
250 V / 4 kV / 3
400 V / 6 kV / 3
Internal wiring: 4 mm 2
Pack.
®
WINSTA L3 L2 L1 PE N L1 PE N L2 PE N L3 PE N Item Color Item No. Unit
Distribution Box Distribution box, black 899-631/350-000 1
N PE L1 L2 L3 N PE L1 N PE L2 N PE L3
WINSTA — perfectly plugged!
®
