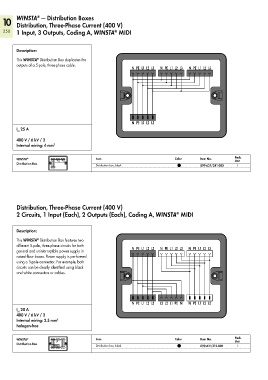

10 WINSTA — Distribution Boxes
Distribution, Three-Phase Current (400 V)
®
250 1 Input, 3 Outputs, Coding A, WINSTA MIDI
Description:
This WINSTA Distribution Box duplicates the
®
outputs of a 5-pole, three-phase cable.
N PE L1 L2 L3 N PE L1 L2 L3 N PE L1 L2 L3
N PE L1 L2 L3
I 25 A
N
400 V / 6 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA N PE L1 L2 L3 N PE L1 L2 L3 N PE L1 L2 L3 Item Color Item No. Unit
®
Distribution Box Distribution box, black 899-631/341-000 1
N PE L1 L2 L3
Distribution, Three-Phase Current (400 V)
2 Circuits, 1 Input (Each), 2 Outputs (Each), Coding A, WINSTA MIDI
®
Description:
This WINSTA Distribution Box features two
®
different 5-pole, three-phase circuits for both N PE L1 L2 L3 N PE L1 L2 L3 N PE L1 L2 L3
general and uninterruptible power supply in
raised-floor boxes. Power supply is performed
using a 5-pole connector. For example, both
circuits can be clearly identified using black
and white connectors or cables.
N PE L1 L2 L3 L3 L2 L1 PE N N PE L1 L2 L3
I 20 A
N
400 V / 6 kV / 3
Internal wiring: 2.5 mm
2
halogen-free
Pack.
WINSTA N PE L1 L2 L3 N PE L1 L2 L3 N PE L1 L2 L3 Item Color Item No. Unit
®
Distribution Box Distribution box, black 899-631/312-000 1
N PE L1 L2 L3 L3 L2 L1 PE N N PE L1 L2 L3
