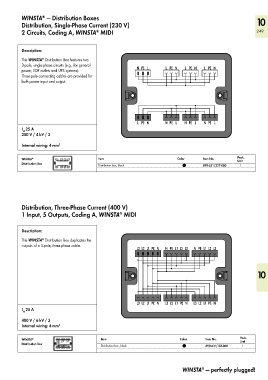

P. 251
WINSTA — Distribution Boxes 10
®
Distribution, Single-Phase Current (230 V)
2 Circuits, Coding A, WINSTA MIDI 249
®
Description:
This WINSTA Distribution Box features two
®
3-pole, single-phase circuits (e.g., for general N PE L L PE N L PE N L PE N
power, EDP outlets and UPS systems).
Three-pole connecting cables are provided for
both power input and output.
L PE N N PE L N PE L N PE L
I 25 A
N
250 V / 4 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA N PE L L PE N L PE N L PE N Item Color Item No. Unit
®
Distribution Box Distribution box, black 899-631/327-000 1
L PE N N PE L N PE L N PE L
Distribution, Three-Phase Current (400 V)
1 Input, 5 Outputs, Coding A, WINSTA MIDI
®
Description:
This WINSTA Distribution Box duplicates the
®
outputs of a 5-pole, three-phase cable.
L3 L2 L1 PE N N PE L1 L2 L3 N PE L1 L2 L3
10
L3 L2 L1 PE N L3 L2 L1 PE N L3 L2 L1 PE N
I 25 A
N
400 V / 6 kV / 3
Internal wiring: 4 mm 2
Pack.
®
WINSTA L3 L2 L1 PE N N PE L1 L2 L3 N PE L1 L2 L3 Item Color Item No. Unit
Distribution Box Distribution box, black 899-631/187-000 1
L3 L2 L1 PE N L3 L2 L1 PE N L3 L2 L1 PE N
WINSTA — perfectly plugged!
®
