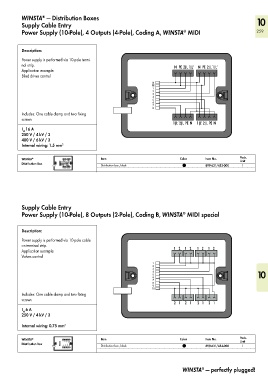

WINSTA — Distribution Boxes 10
®
Supply Cable Entry
Power Supply (10-Pole), 4 Outputs (4-Pole), Coding A, WINSTA MIDI 259
®
Description:
Power supply is performed via 10-pole termi-
nal strip. N PE 2|L 1|L’ N PE 2|L 1|L’
Application example:
Blind drives control
N
PE
1
2
3
4
5
6
7
8
Includes: One cable clamp and two fixing
screws
1|L’ 2|L PE N 1|L’ 2|L PE N
I 16 A
N
250 V / 4 kV / 3
400 V / 6 kV / 3
Internal wiring: 1.5 mm 2
Pack.
WINSTA N PE 2|L 1|L’ N PE 2|L 1|L’ Item Color Item No.
®
N PE 1 Unit
Distribution Box 2 3 4 5
8 6 7 Distribution box, black 899-631/453-000 1
1|L’ 2|L PE N 1|L’ 2|L PE N
Supply Cable Entry
Power Supply (10-Pole), 8 Outputs (2-Pole), Coding B, WINSTA MIDI special
®
Description:
Power supply is performed via 10-pole cable
on terminal strip. 1 2 1 2 1 2 1 2
Application example:
Valves control
1
2
3
4 10
5
6
7
8
9
10
Includes: One cable clamp and two fixing
screws
2 1 2 1 2 1 2 1
I 6 A
N
250 V / 4 kV / 3
Internal wiring: 0.75 mm 2
Pack.
WINSTA 1 1 2 1 2 1 2 1 2 Item Color Item No. Unit
®
Distribution Box 2 3 4 5 6 7 8
10 9 Distribution box, black 899-631/454-000 1
2 1 2 1 2 1 2 1
WINSTA — perfectly plugged!
®
