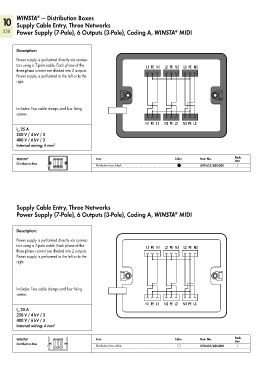

P. 260
®
10 WINSTA — Distribution Boxes
Supply Cable Entry, Three Networks
258 Power Supply (7-Pole), 6 Outputs (3-Pole), Coding A, WINSTA MIDI
®
Description:
Power supply is performed directly via connec-
tors using a 7-pole cable. Each phase of the L1 PE N1 L2 PE N2 L3 PE N3
three-phase current are divided into 2 outputs.
Power supply is performed to the left or to the
right.
Includes: Two cable clamps and four fixing
screws
N1 PE L1 N2 PE L2 N3 PE L3
I 25 A
N
250 V / 4 kV / 3
400 V / 6 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA L1 PE N1 L2 PE N2 L3 PE N3 Item Color Item No. Unit
®
Distribution Box Distribution box, black 899-631/450-000 1
N1 PE L1 N2 PE L2 N3 PE L3
Supply Cable Entry, Three Networks
Power Supply (7-Pole), 6 Outputs (3-Pole), Coding A, WINSTA MIDI
®
Description:
Power supply is performed directly via connec-
tors using a 7-pole cable. Each phase of the L1 PE N1 L2 PE N2 L3 PE N3
three-phase current are divided into 2 outputs.
Power supply is performed to the left or to the
right.
Includes: Two cable clamps and four fixing
screws
N1 PE L1 N2 PE L2 N3 PE L3
I 25 A
N
250 V / 4 kV / 3
400 V / 6 kV / 3
Internal wiring: 4 mm 2
Pack.
®
WINSTA L1 PE N1 L2 PE N2 L3 PE N3 Item Color Item No. Unit
Distribution Box Distribution box, white 899-681/450-000 1
N1 PE L1 N2 PE L2 N3 PE L3
