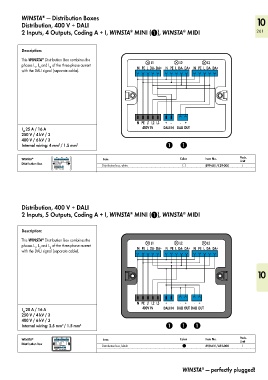

P. 263
WINSTA — Distribution Boxes 10
®
Distribution, 400 V + DALI
2 Inputs, 4 Outputs, Coding A + I, WINSTA MINI (1), WINSTA MIDI 261
®
®
Description:
This WINSTA Distribution Box combines the L1 L2 L3
®
phases L , L and L of the three-phase current N PE L DA- DA+ N PE L DA- DA+ N PE L DA- DA+
1
2
3
with the DALI signal (separate cable).
N PE L1 L2 L3 + - - +
I 25 A / 16 A 400V IN DALI IN DALI OUT
N
250 V / 4 kV / 3
400 V / 6 kV / 3
Internal wiring: 4 mm / 1.5 mm 2 1 1
2
Pack.
WINSTA N PE L DA- DA+ N PE L DA- DA+ N PE L DA- DA+ Item Color Item No. Unit
L2
®
L1
L3
Distribution Box Distribution box, white 899-681/129-000 1
N PE L1 L2 L3 + - - +
400V IN DALI IN DALI OUT
Distribution, 400 V + DALI
2 Inputs, 5 Outputs, Coding A + I, WINSTA MINI (1), WINSTA MIDI
®
®
Description:
This WINSTA Distribution Box combines the
®
L2
L1
L3
phases L , L and L of the three-phase current N PE L DA- DA+ N PE L DA- DA+ N PE L DA- DA+
1
2
3
with the DALI signal (separate cable).
10
N PE L1 L2 L3 + - - + - +
I 20 A / 16 A 400V IN DALI IN DALI OUTDALI OUT
N
250 V / 4 kV / 3
400 V / 6 kV / 3
Internal wiring: 2.5 mm / 1.5 mm 2 1 1 1
2
Pack.
®
WINSTA N PE L DA- DA+ N PE L DA- DA+ N PE L DA- DA+ Item Color Item No. Unit
L2
L1
L3
Distribution Box Distribution box, black 899-631/455-000 1
N PE L1 L2 L3 + - - + - +
400V IN DALI IN DALI OUTDALI OUT
WINSTA — perfectly plugged!
®
