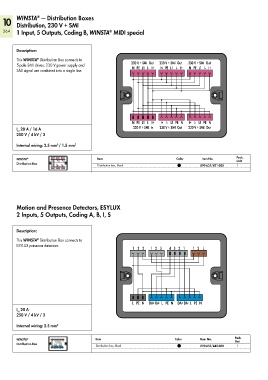

P. 266
®
10 WINSTA — Distribution Boxes
Distribution, 230 V + SMI
®
264 1 Input, 5 Outputs, Coding B, WINSTA MIDI special
Description:
This WINSTA Distribution Box connects to 230 V + SMI Out 230 V + SMI Out 230 V + SMI Out
®
5-pole SMI drives; 230 V power supply and N PE L1 I- I+ N PE L1 I- I+ N PE L1 I- I+
SMI signal are combined into a single line.
N PE L1 I- I+ I+ I- L1 PE N I+ I- L1 PE N
I 20 A / 16 A 230 V + SMI In 230 V + SMI Out 230 V + SMI Out
N
250 V / 4 kV / 3
Internal wiring: 2.5 mm / 1.5 mm 2
2
Pack.
WINSTA 230 V + SMI Out 230 V + SMI Out 230 V + SMI Out Item Color Item No. Unit
®
N PE L1 I- I+
N PE L1 I- I+
N PE L1 I- I+
Distribution Box Distribution box, black 899-631/421-000 1
N PE L1 I- I+ I+ I- L1 PE N I+ I- L1 PE N
230 V + SMI In 230 V + SMI Out 230 V + SMI Out
Motion and Presence Detectors, ESYLUX
2 Inputs, 5 Outputs, Coding A, B, I, S
Description:
This WINSTA Distribution Box connects to
®
ESYLUX presence detectors.
1 2 3 1 2 3 4 3 2 1 1 2 L
L PE N DA+ DA- L PE N DA+ DA- L PE N
I 20 A
N
250 V / 4 kV / 3
Internal wiring: 2.5 mm 2
Pack.
®
WINSTA 1 2 3 1 2 3 4 3 2 1 1 2 L Item Color Item No. Unit
Distribution Box Distribution box, black 899-631/442-000 1
L PE N DA+ DA- L PE N DA+ DA- L PE N
