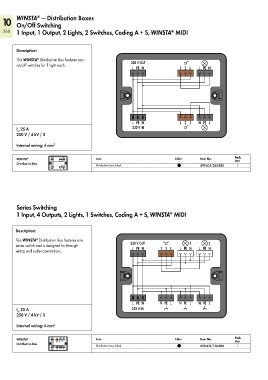

Page 270 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf
P. 270
®
10 WINSTA — Distribution Boxes
On/Off Switching
®
268 1 Input, 1 Output, 2 Lights, 2 Switches, Coding A + S, WINSTA MIDI
Description:
This WINSTA Distribution Box features two 230 V OUT
®
on/off switches for 1 light each.
L PE N 1 2 L L PE N
L PE N L 2 1 N PE L
I 25 A 230 V IN
N
250 V / 4 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA 230 V OUT 1 2 L L PE N Item Color Item No. Unit
®
L PE N
Distribution Box Distribution box, black 899-631/363-000 1
L PE N L 2 1 N PE L
230 V IN
Series Switching
1 Input, 4 Outputs, 2 Lights, 1 Switches, Coding A + S, WINSTA MIDI
®
Description:
This WINSTA Distribution Box features one
®
2
series switch and is designed for through 230 V OUT 1 2 L L PE N 1 L PE N
L PE N
wiring and outlet connections.
L PE N N PE L N PE L N PE L
I 25 A 230 V IN
N
250 V / 4 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA 230 V OUT 1 2 L L PE N 1 L PE N 2 Item Color Item No. Unit
®
L PE N
Distribution Box Distribution box, black 899-631/130-000 1
L PE N N PE L N PE L N PE L
230 V IN
