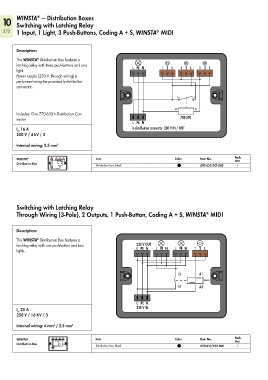

10 WINSTA — Distribution Boxes
Switching with Latching Relay
®
272 1 Input, 1 Light, 3 Push-Buttons, Coding A + S, WINSTA MIDI
Description:
This WINSTA Distribution Box features a
®
latching relay with three push-buttons and one L PE N 1 2 L 1 2 L 1 2 L
light.
Power supply (230 V, through wiring) is
performed using the provided h-distribution
connector.
14 13
A2 A1
Includes: One 770-633 h-Distribution Con-
nector 789-570
L PE N
I 16 A h-distribution connector 230 V IN / OUT
N
250 V / 4 kV / 3
Internal wiring: 2.5 mm 2
Pack.
WINSTA L PE N 1 2 L 1 2 L 1 2 L Item Color Item No. Unit
®
Distribution Box 14 13
A2 A1 Distribution box, black 899-632/101-000 1
789-570
L PE N
h-distribution connector 230 V IN / OUT
Switching with Latching Relay
Through Wiring (3-Pole), 2 Outputs, 1 Push-Button, Coding A + S, WINSTA MIDI
®
Description:
®
This WINSTA Distribution Box features a
latching relay with one push-button and two 230 V OUT
lights. L PE N L PE N L PE N 1 2 L
13 A1
789-570
14 A2
L PE N
I 25 A 230 V IN
N
250 V / 16 KV / 3
Internal wiring: 4 mm / 2.5 mm 2
2
Pack.
WINSTA 230 V OUT L PE N L PE N 1 2 L Item Color Item No. Unit
®
L PE N
Distribution Box 13 14 A1 A2 789-570 Distribution box, black 899-632/199-000 1
Distribution box, black
L PE N
230 V IN
