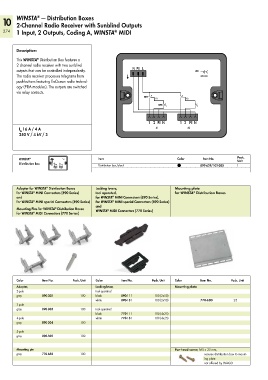

10 WINSTA — Distribution Boxes
2-Channel Radio Receiver with Sunblind Outputs
®
274 1 Input, 2 Outputs, Coding A, WINSTA MIDI

Description:

This WINSTA Distribution Box features a
®
2‐channel radio receiver with two sunblind
outputs that can be controlled independently. N PE L LRN
The radio receiver processes telegrams from antenna
push-buttons featuring EnOcean radio technol-
ogy (PTM modules). The outputs are switched
via relay contacts.
µ µ
K1 K2
µ µ

1 2 PE N 1 2 PE N
I 16 A / 4 A A1 A2
N
250 V / 4 kV / 3

Pack.
WINSTA N PE L LRN antenna Item Color Item No. Unit
®
Distribution Box µ K1 µ µ K2 µ Distribution box, black 899-629/102-000 1
1 2 PE N 1 2 PE N
A1 A2

Adapter for WINSTA Distribution Boxes Locking levers, Mounting plate
®
for WINSTA MINI Connectors (890 Series) tool operated, for WINSTA Distribution Boxes
®
®
and for WINSTA MINI Connectors (890 Series),
®
for WINSTA MINI special Connectors (890 Series) for WINSTA MINI special Connectors (890 Series)
®
®
and
Mounting Pins for WINSTA Distribution Boxes WINSTA MIDI Connectors (770 Series)
®
®
for WINSTA MIDI Connectors (770 Series)
®

Color Item No. Pack. Unit Color Item No. Pack. Unit Color Item No. Pack. Unit
Adapter, Locking lever, Mounting plate
2-pole tool operated
gray 890-302 100 black 890-111 100 (2x50)
white 890-131 100 (2x50) 770-680 25
3-pole
gray 890-303 100 tool operated
black 770-111 100 (4x25)
4-pole white 770-131 100 (4x25)
gray 890-304 100
5-pole
gray 890-305 100

Mounting pin Pan-head screw, M5 x 25 mm,
gray 770-630 100 secures distribution box to mount-
ing plate
not offered by WAGO
