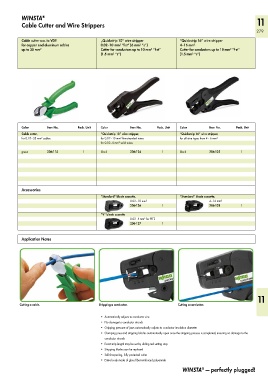

Page 281 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

WINSTA ® 11
Cable Cutter and Wire Strippers
279
Cable cutter acc. to VDE „Quickstrip 10” wire stripper “Quickstrip 16” wire stripper
for copper and aluminum cables 0.02–10 mm² “f-st” (6 mm² “s”) 4–16 mm²
up to 35 mm² Cutter for conductors up to 10 mm² “f-st” Cutter for conductors up to 10 mm² “f-st”
(1.5 mm² “s”) (1.5 mm² “s”)

Color Item No. Pack. Unit Color Item No. Pack. Unit Color Item No. Pack. Unit
Cable cutter, “Quickstrip 10” wire stripper, “Quickstrip 16” wire stripper,
for 0.25–35 mm² cables for 0.02–10 mm² fine-stranded wires for all wire types from 4– 6 mm²
for 0.02–6 mm² solid wires
green 206-118 1 black 206-124 1 black 206-125 1

Accessories
“Standard” blade cassette, “Standard” blade cassette,
0.02–10 mm² 4–16 mm²
206-126 1 206-128 1

“V” blade cassette
0.02–4 mm² for PTFE
206-127 1

Application Notes

11

Cutting a cable. Stripping a conductor. Cutting a conductor.

• Automatically adjusts to conductor size
• No damage to conductor strands
• Gripping pressure of jaws automatically adjusts to conductor insulation diameter
• Clamping jaws and stripping blades automatically open once the stripping process is completed, ensuring no damage to the
conductor strands
• Exact strip length may be set by sliding red setting stop
• Stripping blades can be replaced
• Self-sharpening, fully protected cutter
• Entire body made of glass fiber-reinforced polyamide
WINSTA — perfectly plugged!
®
