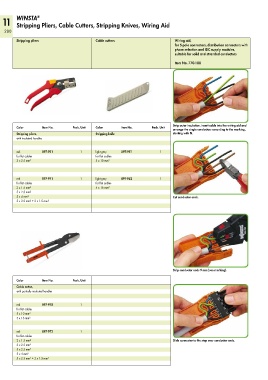

11   WINSTA    ®
        Stripping Pliers, Cable Cutters, Stripping Knives, Wiring Aid
   280
        Stripping pliers                    Cable cutters                      Wiring aid,
                                                                               for 5-pole connectors, distribution connectors with
                                                                               phase selection and IDC supply modules,
                                                                               suitable for solid and stranded conductors

                                                                               Item No. 770-100















                                                                              Strip outer insulation, insert cable into the wiring aid and
        Color       Item No.     Pack. Unit   Color    Item No.     Pack. Unit   arrange the single conductors according to the marking,
        Stripping pliers,                   Stripping knife                   starting with N.
        with insulated handles

        red         897-931          1      light gray    897-951       1
        for flat cables                     for flat cables
        3 x 2.5 mm²                         5 x 10 mm²



        red         897-971          1      light gray    897-952       1
        for flat cables                     for flat cables
        2 x 1.5 mm²                         5 x 16 mm²
        5 x 2.5 mm²
        5 x 4 mm²                                                             Cut conductor ends.
        5 x 2.5 mm² + 2 x 1.5 mm²

















                                                                              Strip conductor ends 9 mm (see marking).

        Color       Item No.     Pack. Unit
        Cable cutter,
        with partially insulated handles


        red         897-970          1
        for flat cables
        5 x 10 mm²
        5 x 16 mm²


        red         897-972          1
        for flat cables
        2 x 1.5 mm²                                                           Slide connector to the stop over conductor ends.
        3 x 2.5 mm²
        5 x 2.5 mm²
        5 x 4 mm²
        5 x 2.5 mm² + 2 x 1.5 mm²
