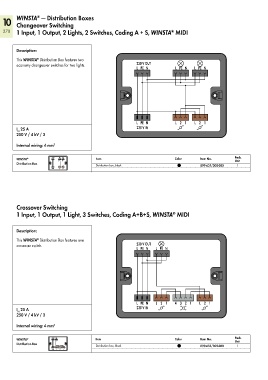

10 WINSTA — Distribution Boxes
Changeover Switching
®
270 1 Input, 1 Output, 2 Lights, 2 Switches, Coding A + S, WINSTA MIDI
Description:
This WINSTA Distribution Box features two
®
economy changeover switches for two lights. 230 V OUT
L PE N L PE N L PE N
L PE N L 2 1 L 2 1
I 25 A 230 V IN
N
250 V / 4 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA 230 V OUT L PE N L PE N Item Color Item No. Unit
®
L PE N
Distribution Box Distribution box, black 899-631/308-000 1
L PE N L 2 1 L 2 1
230 V IN
Crossover Switching
1 Input, 1 Output, 1 Light, 3 Switches, Coding A+B+S, WINSTA MIDI
®
Description:
This WINSTA Distribution Box features one
®
crossover switch. 230 V OUT
L PE N L PE N
L PE N L 2 1 4 3 2 1 L 2 1
I 25 A 230 V IN
N
250 V / 4 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA 230 V OUT L PE N Item Color Item No. Unit
®
L PE N
Distribution Box Distribution box, black 899-631/305-000 1
L PE N L 2 1 4 3 2 1 L 2 1
230 V IN
