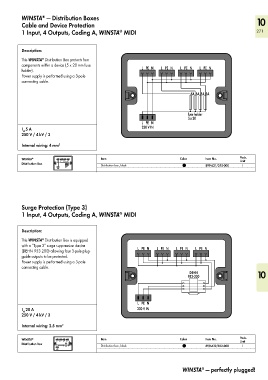

WINSTA — Distribution Boxes 10
®
Cable and Device Protection
1 Input, 4 Outputs, Coding A, WINSTA MIDI 271
®
Description:
This WINSTA Distribution Box protects four
®
components within a device (5 x 20 mm fuse L PE N L PE N L PE N L PE N
holder).
Power supply is performed using a 3-pole
connecting cable.
5A 5A 5A 5A
fuse holder
5 x 20
L PE N
I 5 A 230 V IN
N
250 V / 4 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA L PE N L PE N L PE N L PE N Item Color Item No. Unit
®
Distribution Box 5A 5A 5A 5A
fuse holder Distribution box, black 899-631/315-000 1
L PE N 5 x 20
230 V IN
Surge Protection (Type 3)
1 Input, 4 Outputs, Coding A, WINSTA MIDI
®
Description:
This WINSTA Distribution Box is equipped
®
with a “Type 3” surge suppression device
(DEHN 953 200) allowing four 3-pole plug- L PE N L PE N L PE N L PE N
gable outputs to be protected.
Power supply is performed using a 3-pole
connecting cable.
DEHN 10
953-200
L PE N
I 20 A 230 V IN
N
250 V / 4 kV / 3
Internal wiring: 2.5 mm 2
Pack.
WINSTA L PE N L PE N L PE N L PE N Item Color Item No. Unit
®
Distribution Box DEHN 953-200 Distribution box, black 899-632/182-000 1
L PE N
230 V IN
WINSTA — perfectly plugged!
®
