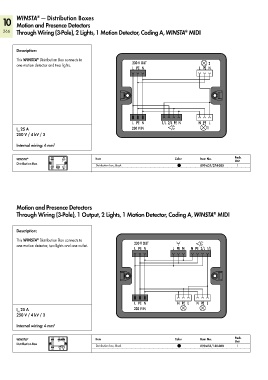

10 WINSTA — Distribution Boxes
Motion and Presence Detectors
®
266 Through Wiring (3-Pole), 2 Lights, 1 Motion Detector, Coding A, WINSTA MIDI
Description:
This WINSTA Distribution Box connects to 230 V OUT
®
one motion detector and two lights. 2
L PE N L PE N
L PE N 1/L 2/L PE N N PE L
I 25 A 230 V IN 1
N
250 V / 4 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA L PE N L PE N 2 Item Color Item No. Unit
®
230 V OUT
Distribution Box Distribution box, black 899-631/374-000 1
L PE N 1/L 2/L PE N N PE L
230 V IN 1
Motion and Presence Detectors
Through Wiring (3-Pole), 1 Output, 2 Lights, 1 Motion Detector, Coding A, WINSTA MIDI
®
Description:
This WINSTA Distribution Box connects to
®
one motion detector, two lights and one outlet. 230 V OUT
L PE N L PE N N PE 2/L 1/L
L PE N N PE L N PE L
I 25 A 230 V IN
N
250 V / 4 kV / 3
Internal wiring: 4 mm 2
Pack.
WINSTA 230 V OUT L PE N N PE 2/L 1/L Item Color Item No. Unit
®
L PE N
Distribution Box Distribution box, black 899-631/180-000 1
L PE N N PE L N PE L
230 V IN
